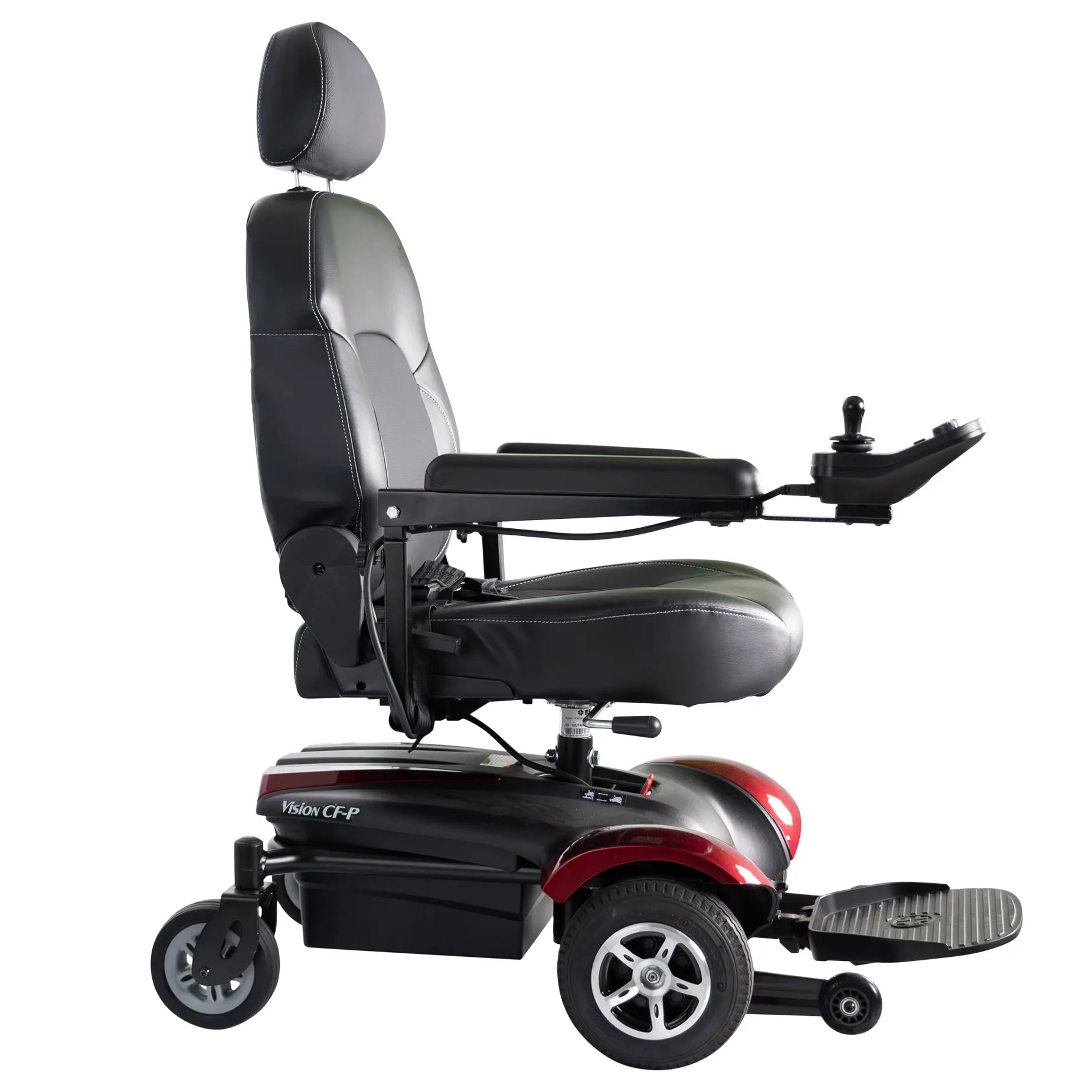

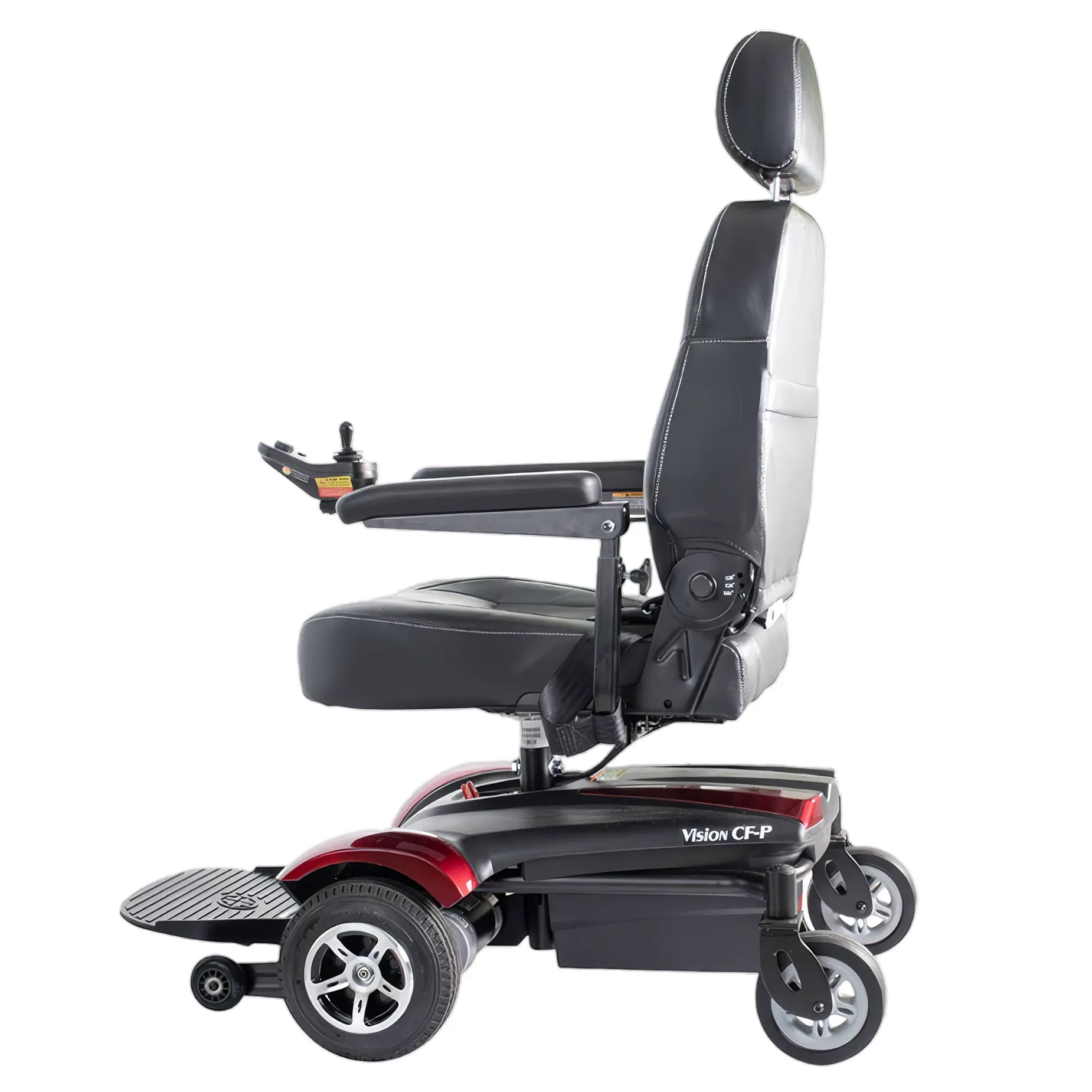

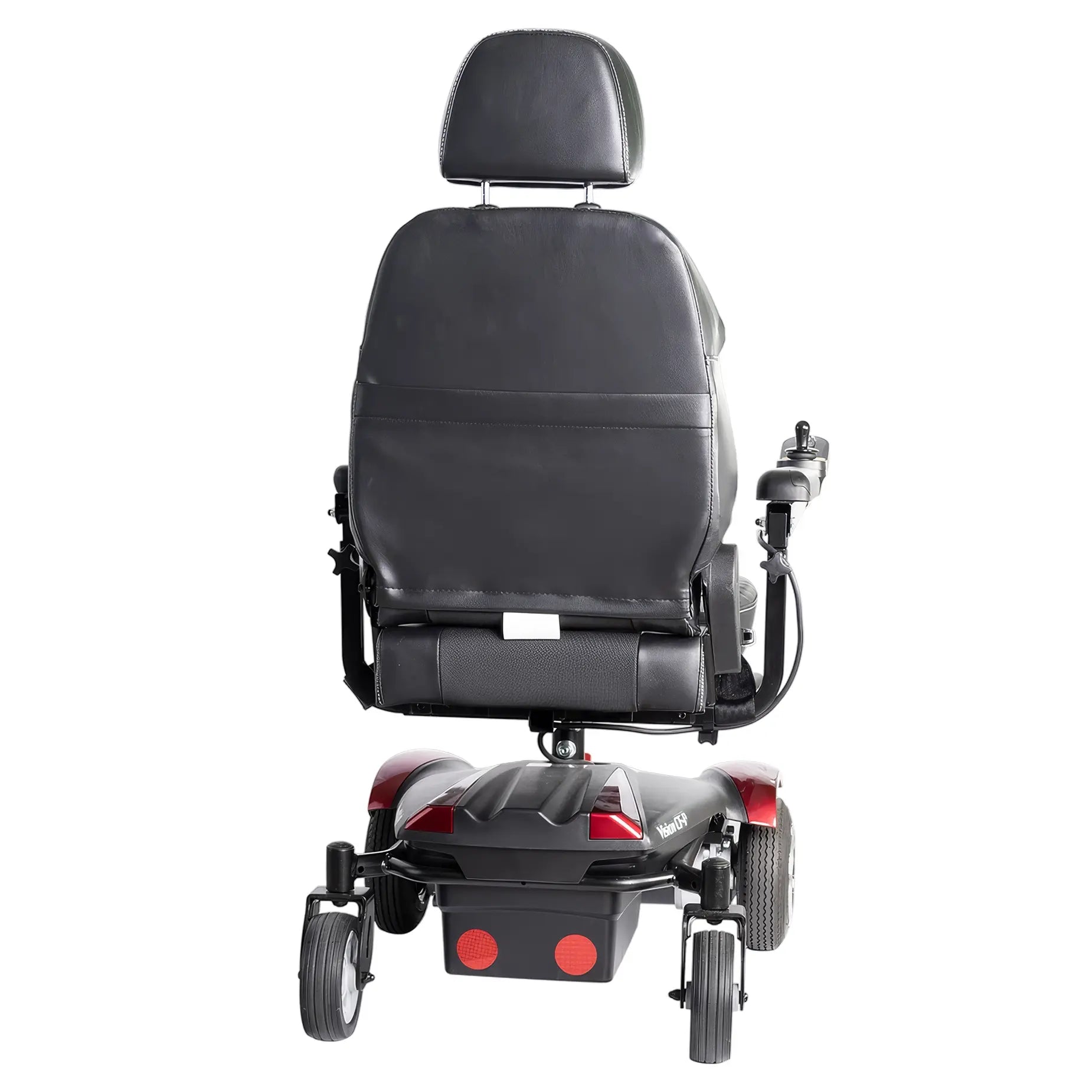

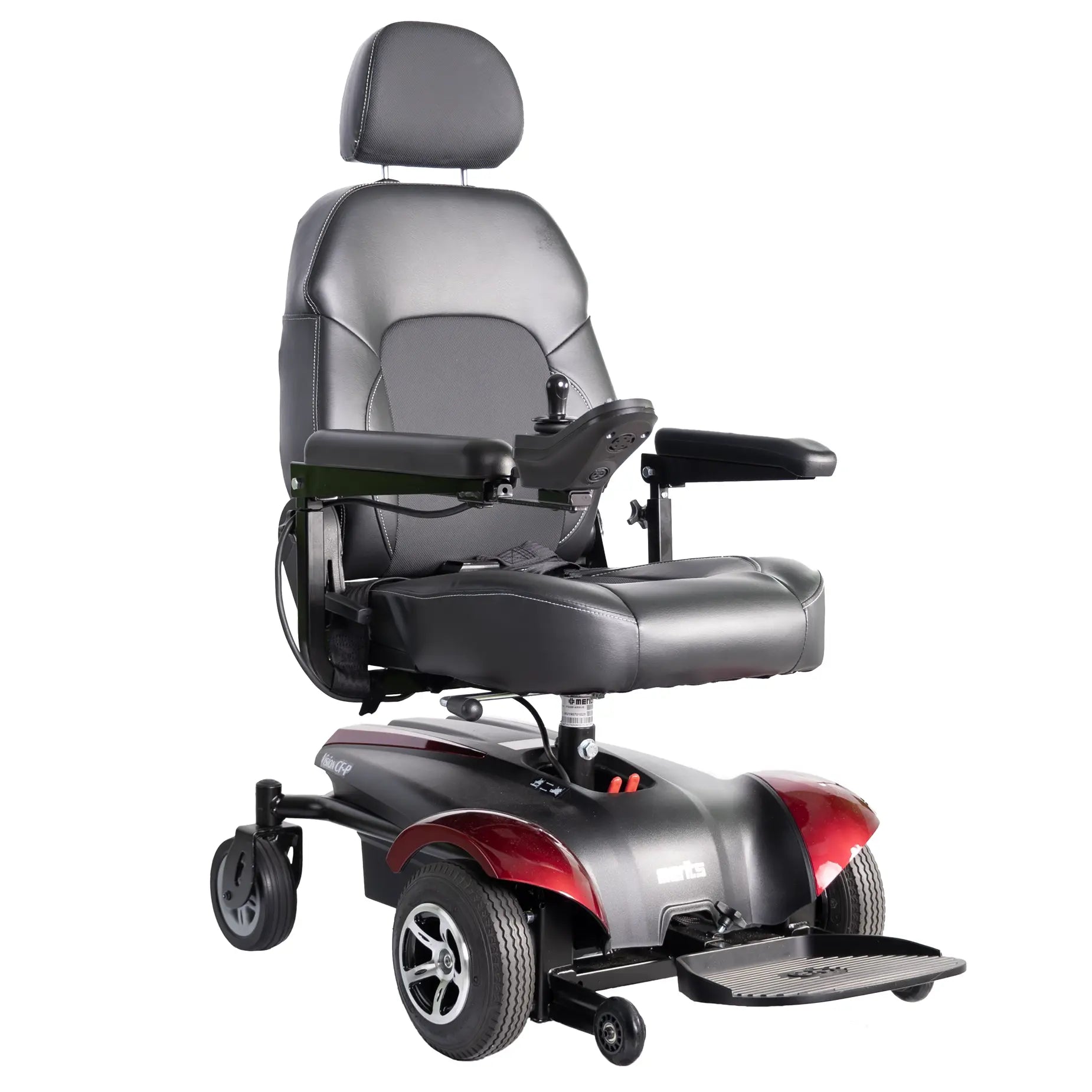

Merits Vision CF power wheelchair (P322), front-wheel drive, 300 lbs weight capacity, range up to 18 miles per charge.
- Precision Steering: A true front-wheel drive platform with a 17-inch turning radius delivers exceptional maneuverability in tight spaces.
- Superior Traction: Large 9-inch knobby drive tires provide dependable traction across a variety of indoor and outdoor surfaces.
- Smart Controls: The Dynamic LiNX controller offers Bluetooth-enabled programming and streamlined diagnostics for simplified service.
- Personalized Seating: Ergonomic captain or pan seating with adjustable seat depth creates a comfortable, customized fit. Merits products are available exclusively through our network of authorized dealers and retailers. Find the dealer closest to you and take the next step toward greater mobility.
- Welcome to the Product Toolkit: Everything dealers and providers need to sell, support, and order this product is assembled here in one place. Select a tab above to access fliers, manuals, and more.
- Download Fliers & Images: Product Flier Product Images
- Download Manuals & Guides: User Manual Merits Basic Troubleshooting Guide Contact Us 4245 Evans Ave. Fort Myers, FL 33901 (239) 772-0579 sales@meritsusa.com 2026 Copyright. All rights reserved. Merits Health Products.
Specifications
General Specifications
- Weight Capacity: 300 lbs.
- Drive Configuration: FWD
- Turning Radius: 22"
- Ground Clearance: 2"
- Gradient (Incline): 6°
- Range Per Charge: Up to 18 miles
- Overall Length: 33.75"
- Overall Width: 23"-27"
- Product Weight: 154 lbs.
Seating Details
- Seat Type: Captain or pan seat
- Seat Width Options: 16", 18", or 20"
- Seat Depth Options: 16"-20"
- Seat-to-Floor Height: Captain: 20.5"-22.5"Pan: 17.25"-19.25"
- Backrest Height: 18"-20"
Technical Details
- Motor: DC 24V/130W
- Controller: Dynamic LiNX 40A
- Battery Size: 35Ah, 12V, U1(2 required)
- Off-Board Charger: 5A
- Drive Wheels: 9” foam-filled
- Casters: Front: 3" anti-tippers • Rear: 6" foam-filled
Coverage & Billing
- Medicare Group: Group 1 & Group 2
- Medicare Code: K0815/K0816/K0820/K0821
Compatible Accessories
- 66" Seat Belt (Standard is 60”) (43700319)
- 80" Seat Belt (Loop Style) (43701)
- Backpack - Medium 12" x 13" x 3” (B1117)
- Backpack - Deluxe 14” x 16” x 4” (B1121)
- Cane Holder (B6212)
- Crutch Holder (B6213)
- Cane & Crutch Holder (34200010)
- Cup Holder (46700060)
- Foldable Rear Basket - Medium (34200019)
- Foldable Rear Basket - Large (34200006)
- Multi-Accessory Receiver Adaptor (J4M)
- Oxygen Tank Holder #2 (B6211)
- Power Wheelchair Cover - Large (PWCC)
- Safety Flag (F1100)
- Side Bag (43701032)
- USB Charger (61230167)
- Walker Holder #1 (34203010)
- Walker Holder #2 (B6214)
Warranty
Covered by the Merits Health Products, Inc. warranty, administered through the selling dealer from the original consumer purchase date: 5-year warranty on the base frame; 13-month warranty on the joystick/power module/controller, motor/gearbox/brake assembly, electrical harnesses, angle sensor, circuit boards, charger, transaxle, seat components (post/mount, metal seat frame, swivel mechanism, cushion/back/positioning accessories), power seat actuator, caster beam and forks, anti-tipper assembly, footplates, and batteries. Wear items (tires and tubes, upholstery, fuses and bulbs, motor brushes, brake pads, plastic/rubber parts, battery cases, painted surfaces) are excluded. Full terms: Merits Warranty Policy (PDF)
