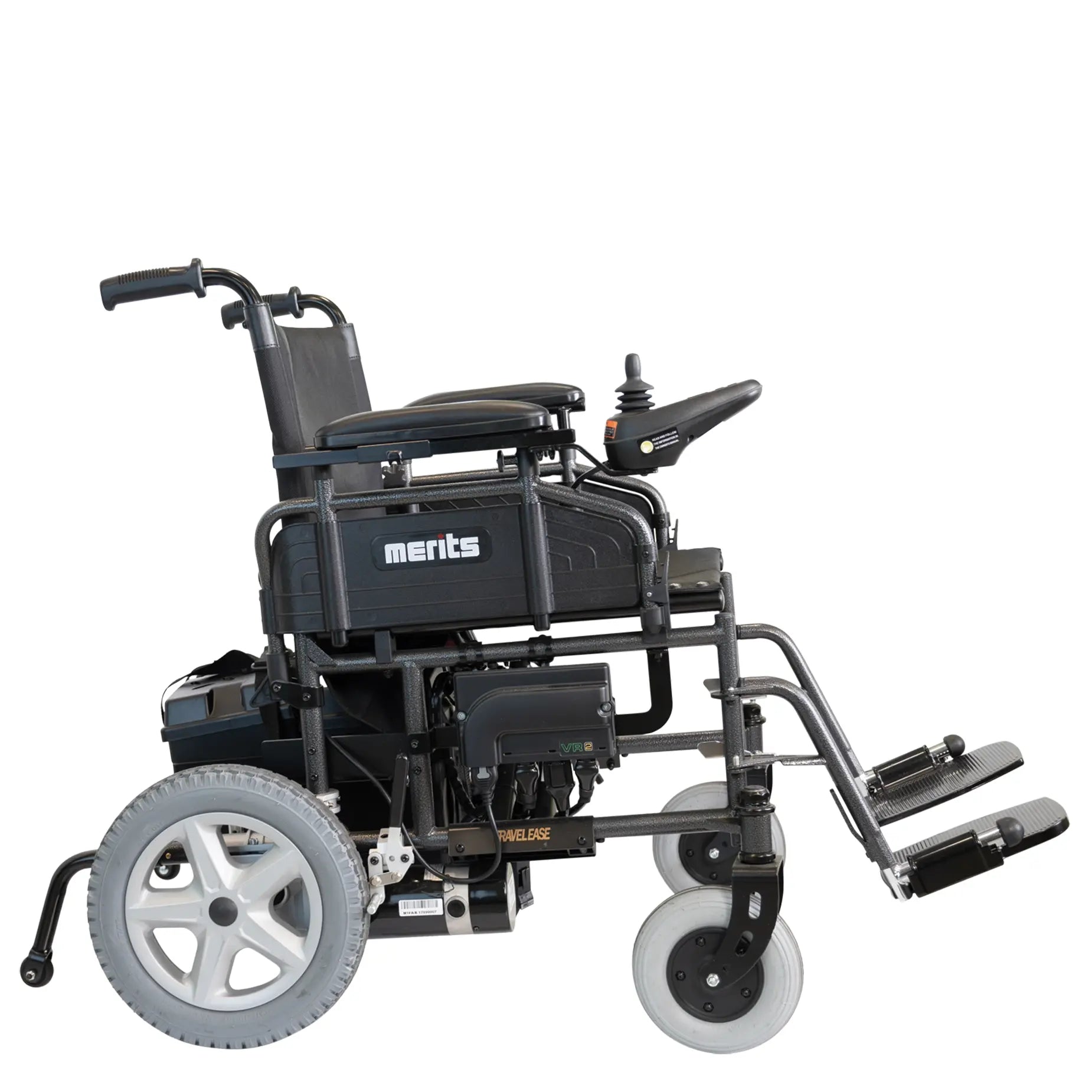

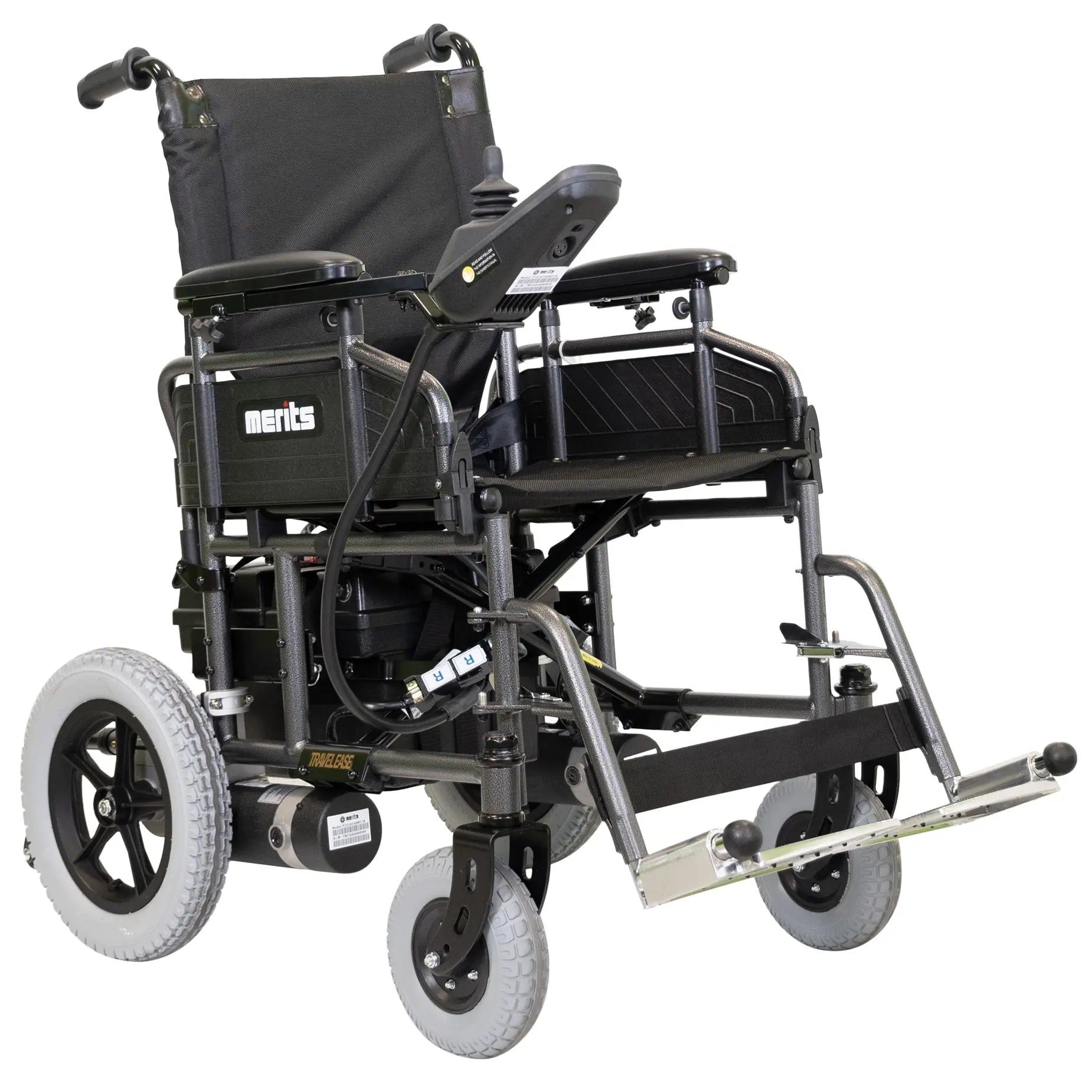

Merits Travel-Ease power wheelchair (P101), rear-wheel drive, 300 lbs weight capacity, range up to 18 miles per charge.
- Folding Design: The folding frame makes storage, transportation, and travel simple and convenient.
- Superior Traction: Large 12.5-inch drive wheels provide dependable traction and a smooth ride across varied surfaces.
- Obstacle Clearance: A 4.5-inch ground clearance helps users navigate thresholds and uneven terrain with greater confidence.
- Long-Range: Travel up to 18 miles per charge for reliable mobility throughout the day.
Specifications
General Specifications
- Weight Capacity: 300 lbs.
- Drive Configuration: RWD
- Turning Radius: 25.5"
- Ground Clearance: 4"
- Gradient (Incline): 10°
- Range Per Charge: Up to 18 miles
- Overall Length: 37.5"
- Overall Width: 23"-27"
- Product Weight: 150 lbs.
Seating Details
- Seat Type: Sling seat
- Seat Width Options: 18"-20"
- Seat Depth Options: 16"
- Seat-to-Floor Height: 20"
- Backrest Height: 16", 18", or 20"
Technical Details
- Motor: DC 24V/180W
- Controller: PG VR2 70A
- Battery Size: 35Ah, 12V, U1(2 required)
- Off-Board Charger: 5A
- Drive Wheels: 12.5” foam-filled
- Casters: Front: 8" foam-filledRear: 1.5" anti-tippers
Coverage & Billing
- Medicare Group: Group 2
- Medicare Code: K0822
Compatible Accessories
- 66" Seat Belt (Standard is 60”) (43700319)
- 80" Seat Belt (Loop Style) (43701)
- Cup Holder (46700060)
- Power Wheelchair Cover - Large (PWCC)
- Safety Flag (F1100)
- Side Bag (43701032)
- USB Charger (61230167)
Warranty
Covered by the Merits Health Products, Inc. warranty, administered through the selling dealer from the original consumer purchase date: 5-year warranty on the base frame; 13-month warranty on the joystick/power module/controller, motor/gearbox/brake assembly, electrical harnesses, angle sensor, circuit boards, charger, transaxle, seat components (post/mount, metal seat frame, swivel mechanism, cushion/back/positioning accessories), power seat actuator, caster beam and forks, anti-tipper assembly, footplates, and batteries. Wear items (tires and tubes, upholstery, fuses and bulbs, motor brushes, brake pads, plastic/rubber parts, battery cases, painted surfaces) are excluded. Full terms: Merits Warranty Policy (PDF)
