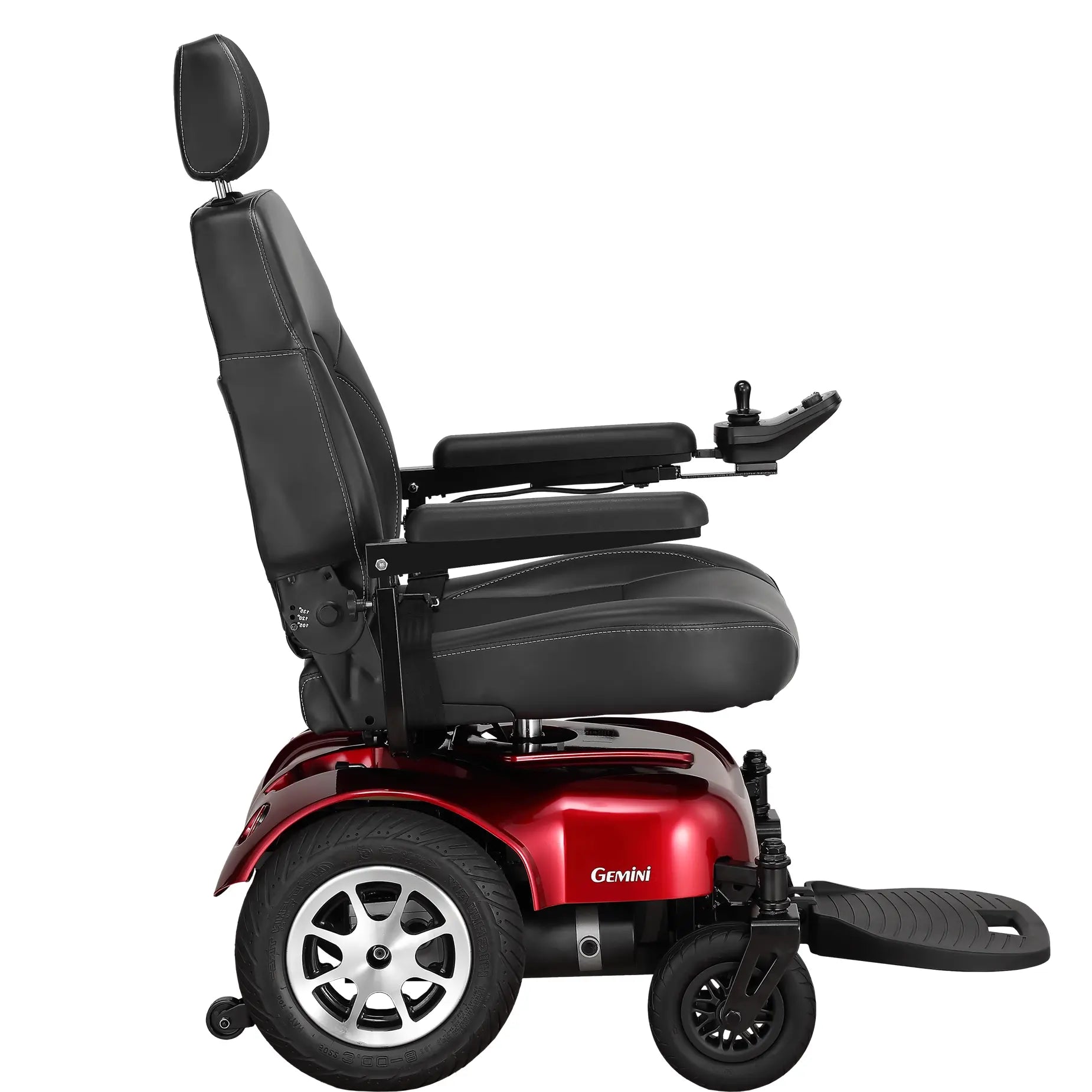

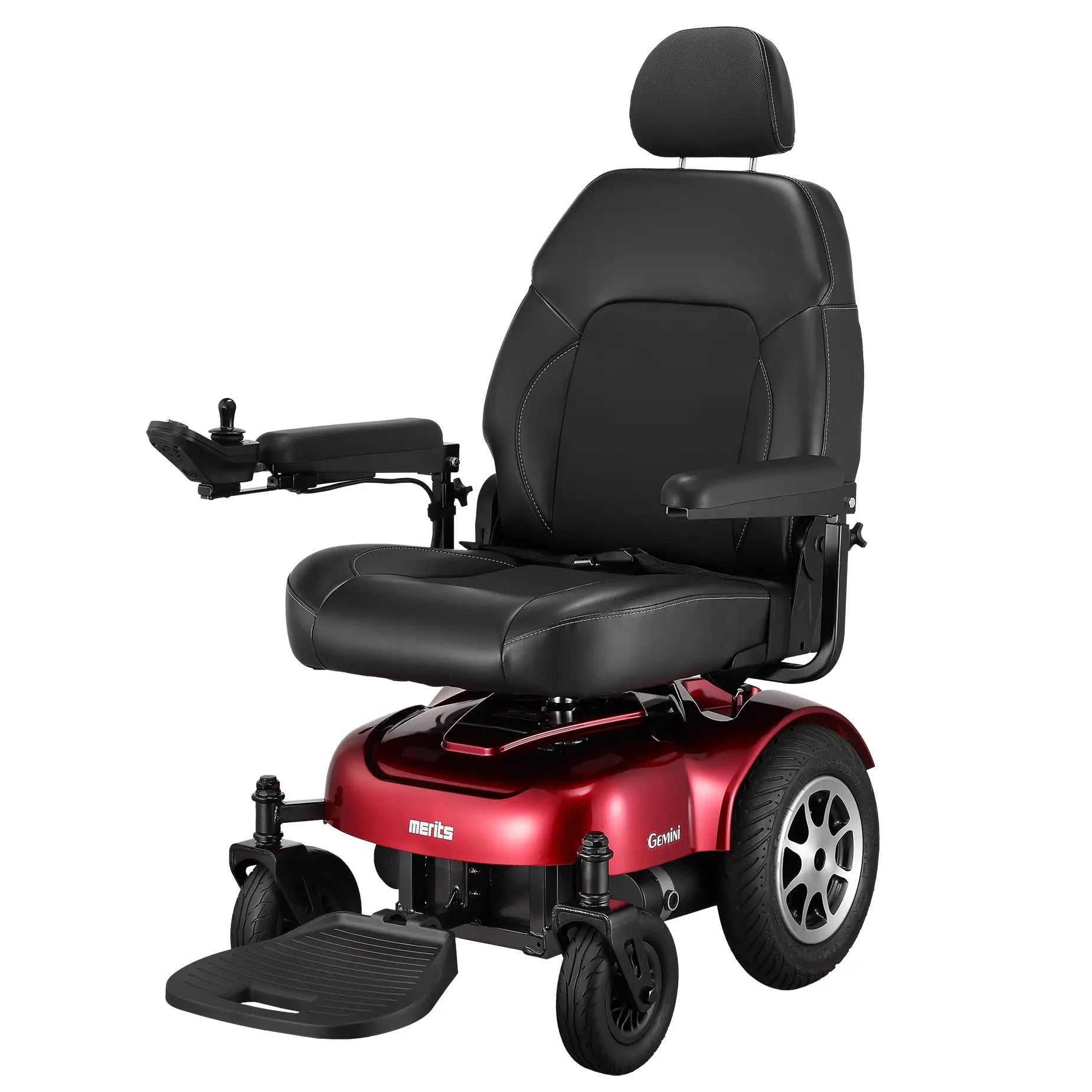

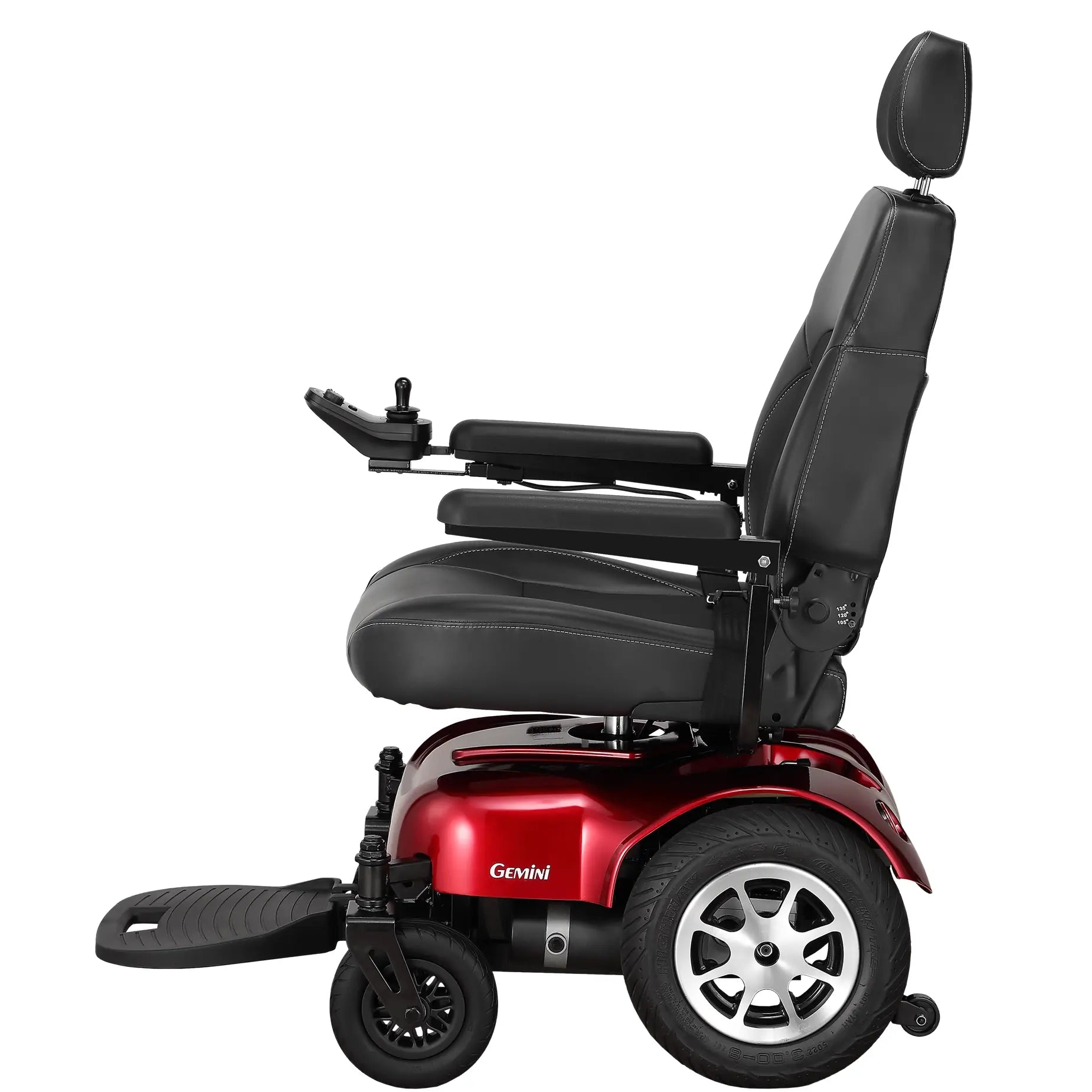

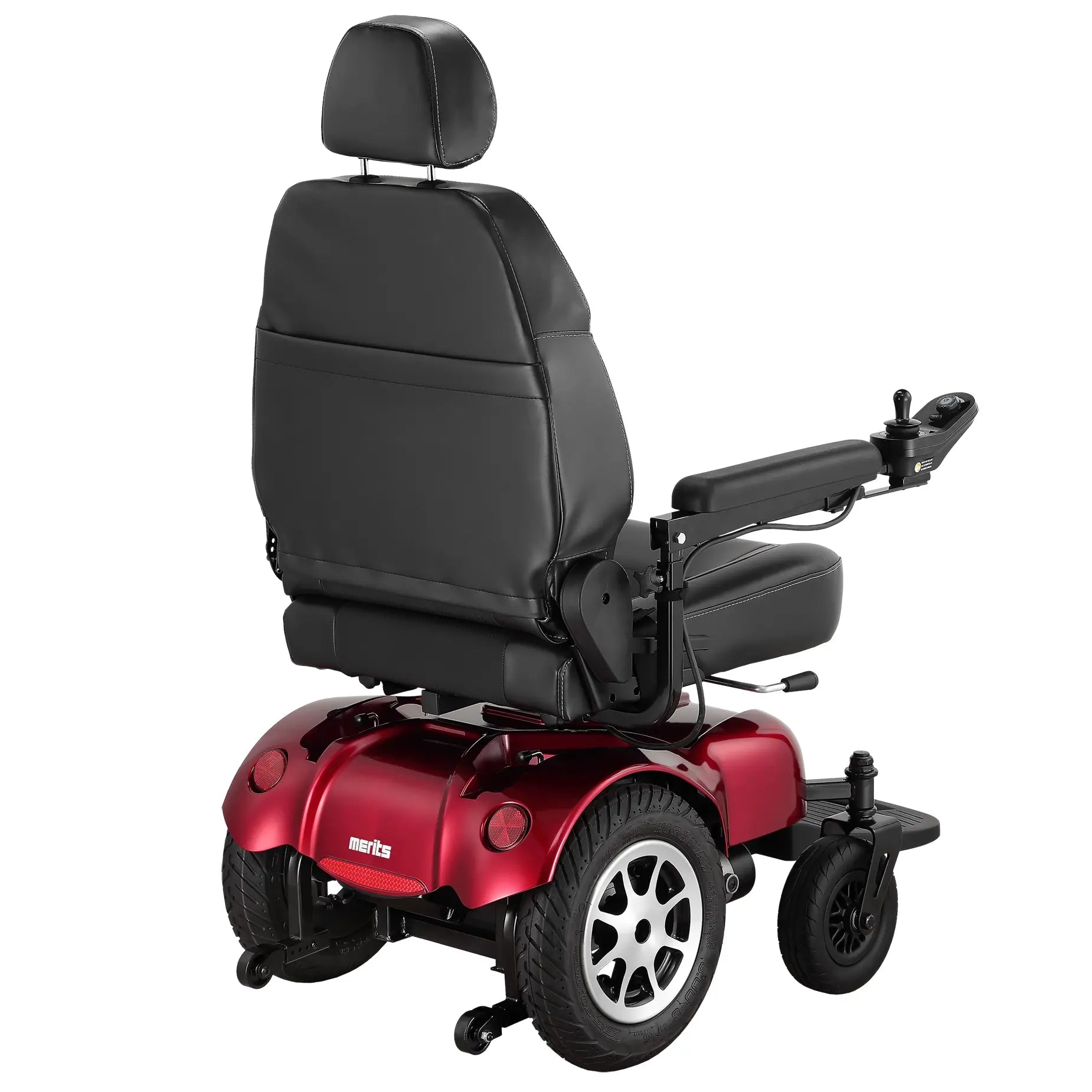

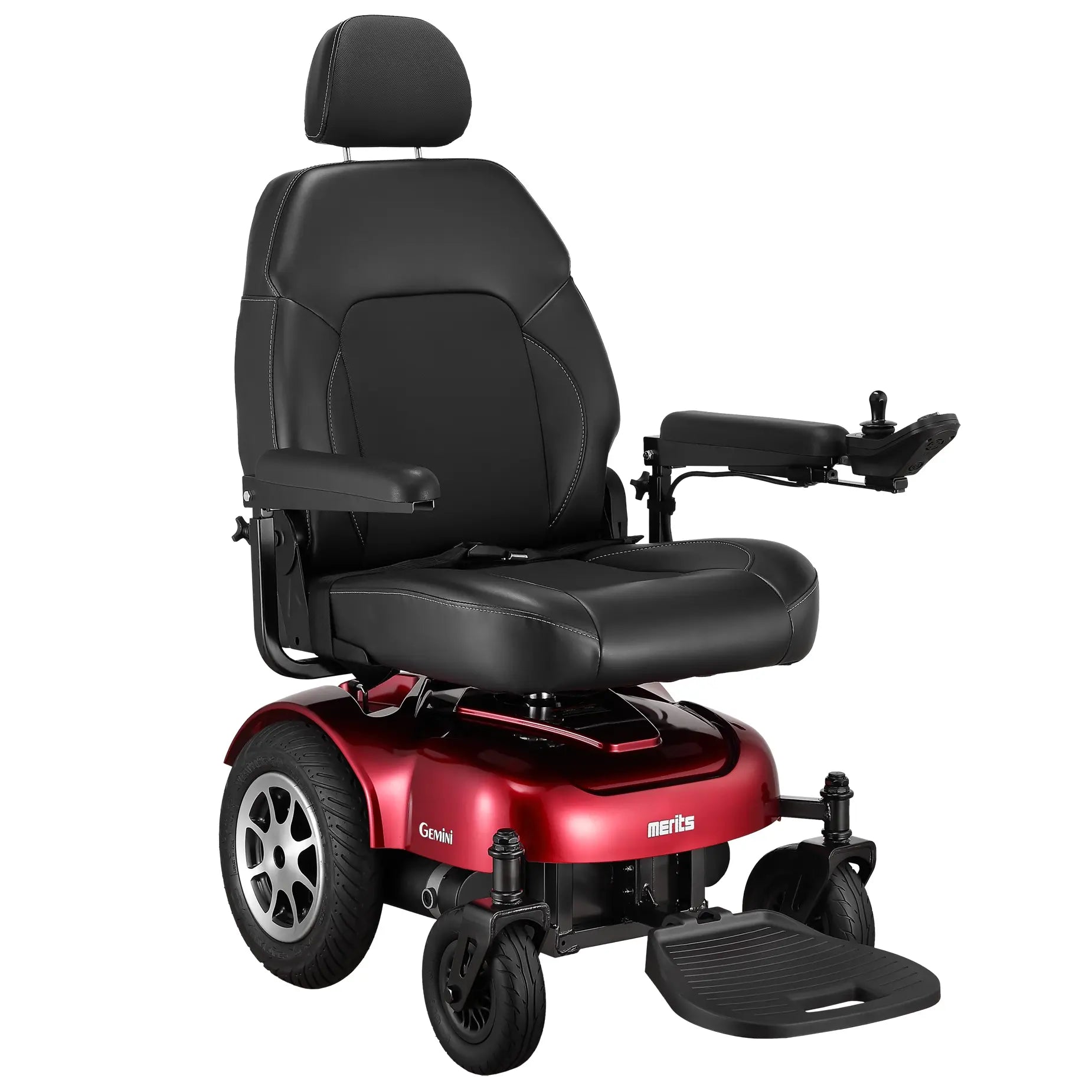

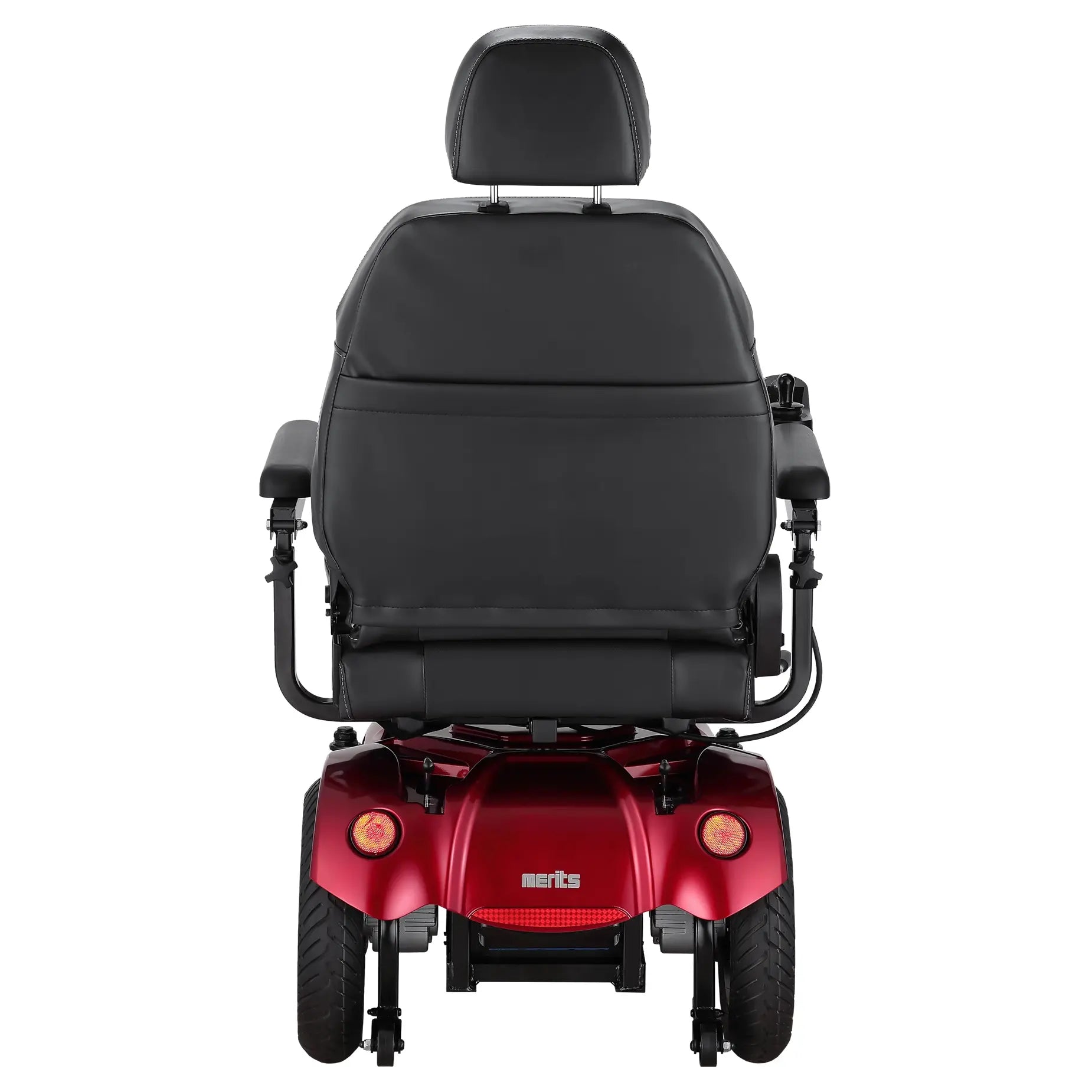

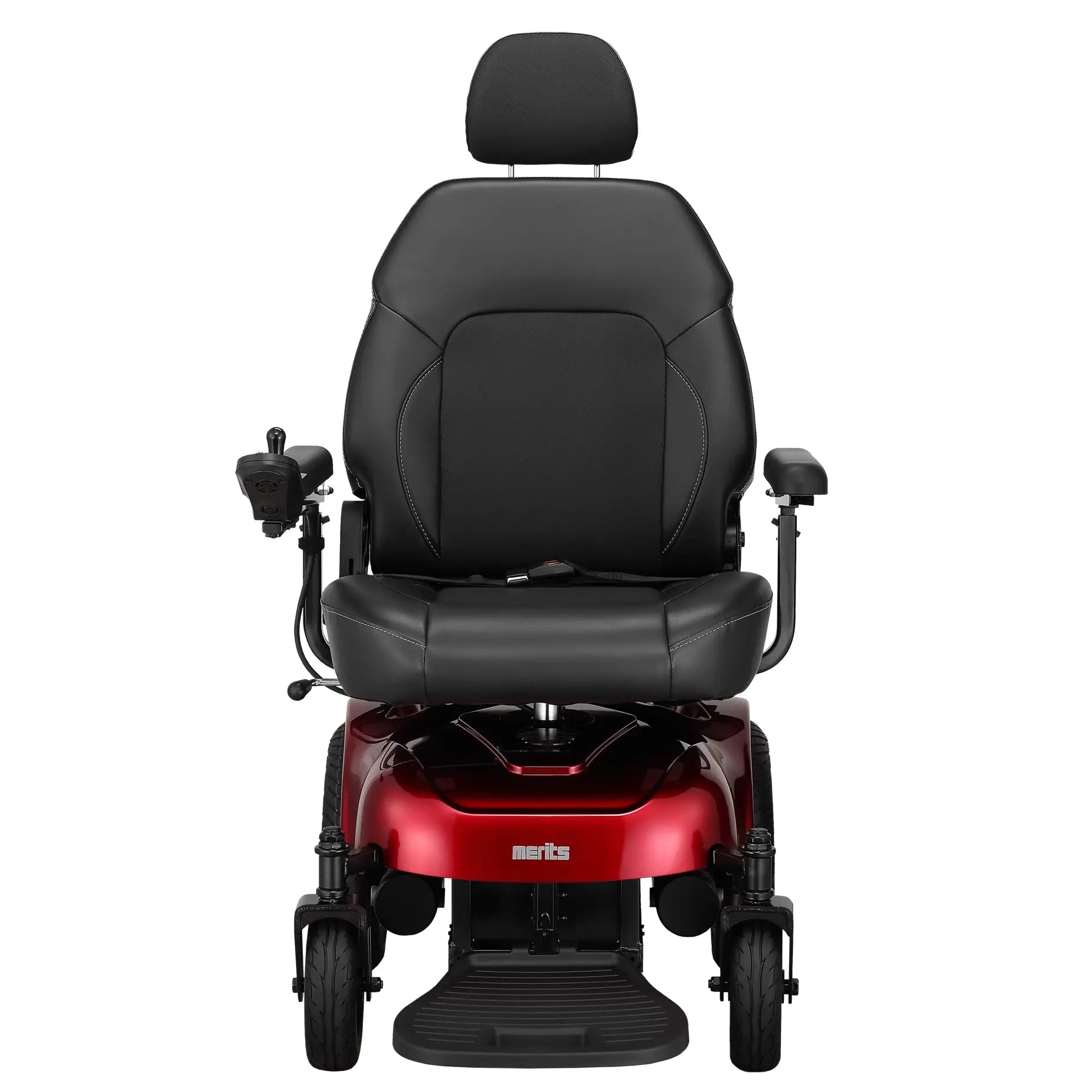

Merits Gemini power wheelchair (P301), rear-wheel drive, 450 lbs weight capacity, range up to 20 miles per charge.
- Heavy-Duty Support: A 450-pound weight capacity provides dependable performance and stability for users requiring greater support.
- Ergonomic Comfort: A semi-reclining captain or pan seat reclines up to 135° for personalized comfort and positioning.
- Superior Traction: Large 14-inch rubber drive tires deliver confident traction and smooth performance across varied terrain.
- Optional Seat Lift: An available 5-inch power elevating seat enhances accessibility and everyday independence. Merits products are available exclusively through our network of authorized dealers and retailers. Find the dealer closest to you and take the next step toward greater mobility.
- Welcome to the Product Toolkit: Everything dealers and providers need to sell, support, and order this product is assembled here in one place. Select a tab above to access fliers, manuals, and more.
- Download Fliers & Images: Product Flier Product Images
- Download Manuals & Guides: User Manual Merits Basic Troubleshooting Guide Contact Us 4245 Evans Ave. Fort Myers, FL 33901 (239) 772-0579 sales@meritsusa.com 2026 Copyright. All rights reserved. Merits Health Products.
Specifications
General Specifications
- Weight Capacity: 450 lbs.
- Drive Configuration: RWD
- Turning Radius: 23"
- Ground Clearance: 4"
- Gradient (Incline): 10°
- Range Per Charge: Up to 20 miles
- Overall Length: 35"
- Overall Width: 25"-29"
- Product Weight: 242 lbs.
Seating Details
- Seat Type: Captain or pan seat
- Seat Width Options: 18", 20", or 22"
- Seat Depth Options: 18-20"
- Seat-to-Floor Height: Captain: 23”-27"Pan: 19.75"-23.75"
- Backrest Height: 20"
Technical Details
- Motor: DC 24V/240W

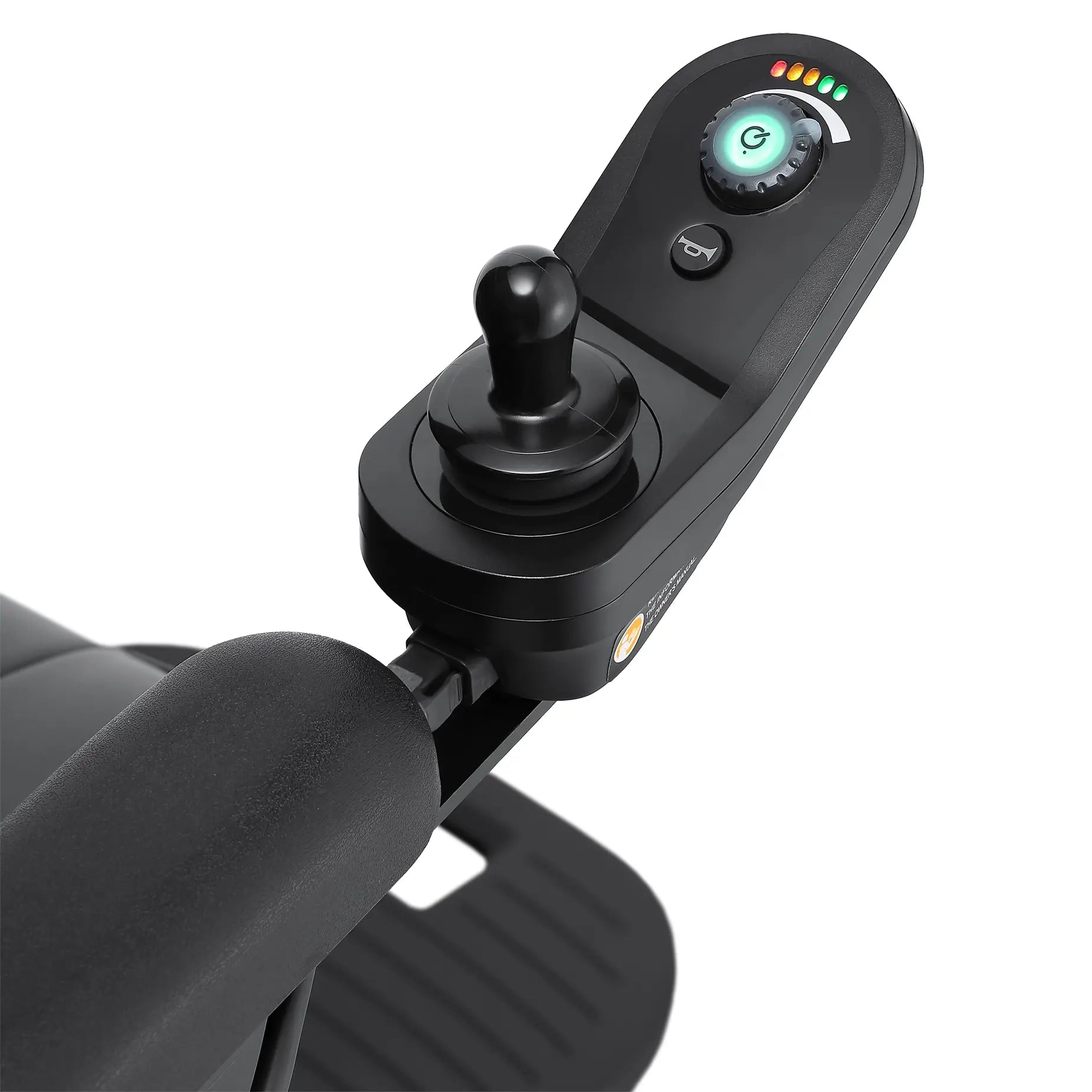

- Controller: Dynamic LiNX, 60A
- Battery Size: 55Ah, 12V, 22NF(2 required)
- Off-Board Charger: 5A
- Drive Wheels: 14” foam-filled
- Casters: Front: 9” foam-filled • Rear: 3” anti-tippers
Coverage & Billing
- Medicare Group: Group 2
- Medicare Code: K0824/K0825
Compatible Accessories
- 66" Seat Belt (Standard is 60”) (43700319)
- 80" Seat Belt (Loop Style) (43701)
- Cup Holder (46700060)
- Power Wheelchair Cover - Large (PWCC)
- Safety Flag (F1100)
- Side Bag (43701032)
- USB Charger (61230167)
Warranty
Covered by the Merits Health Products, Inc. warranty, administered through the selling dealer from the original consumer purchase date: 5-year warranty on the base frame; 13-month warranty on the joystick/power module/controller, motor/gearbox/brake assembly, electrical harnesses, angle sensor, circuit boards, charger, transaxle, seat components (post/mount, metal seat frame, swivel mechanism, cushion/back/positioning accessories), power seat actuator, caster beam and forks, anti-tipper assembly, footplates, and batteries. Wear items (tires and tubes, upholstery, fuses and bulbs, motor brushes, brake pads, plastic/rubber parts, battery cases, painted surfaces) are excluded. Full terms: Merits Warranty Policy (PDF)
