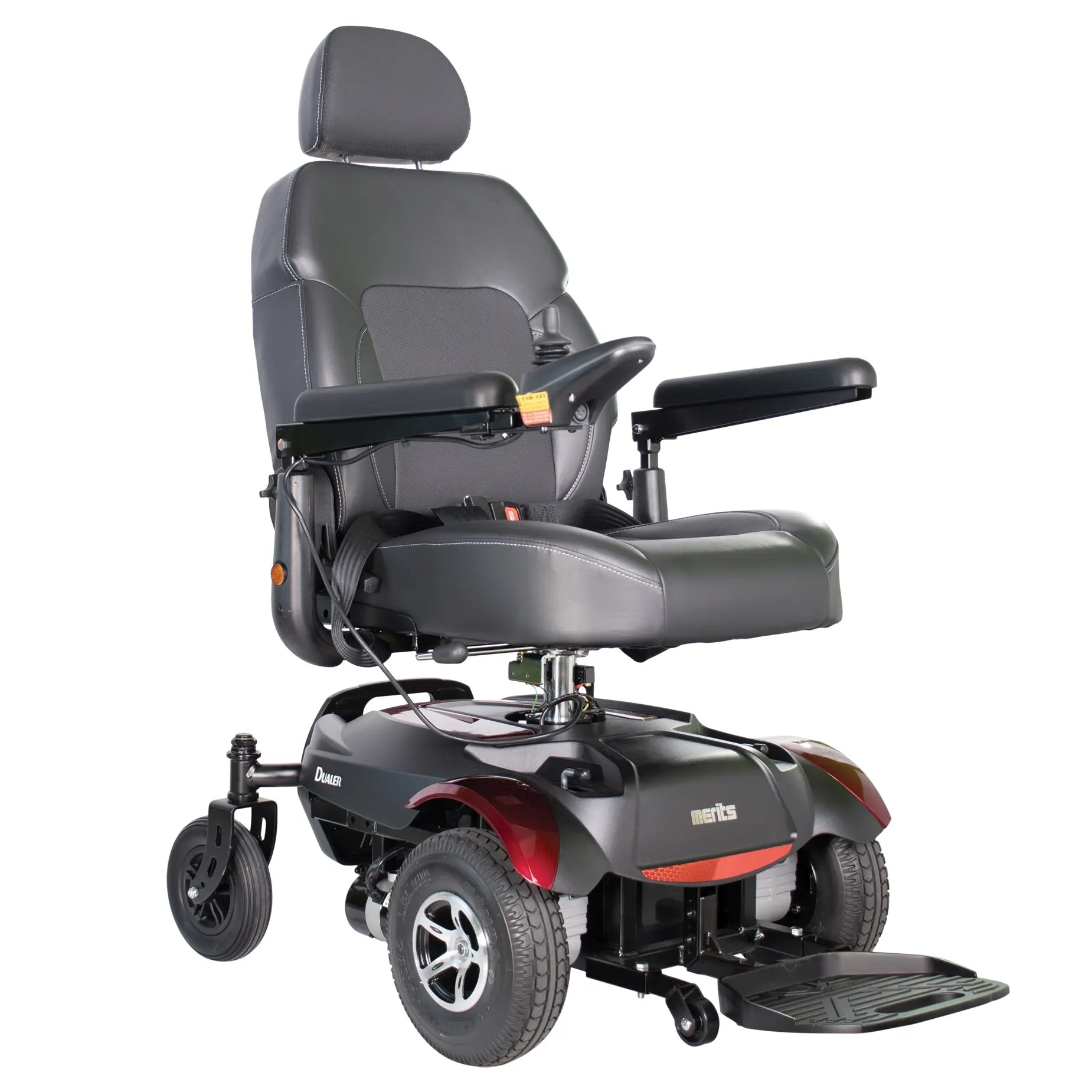

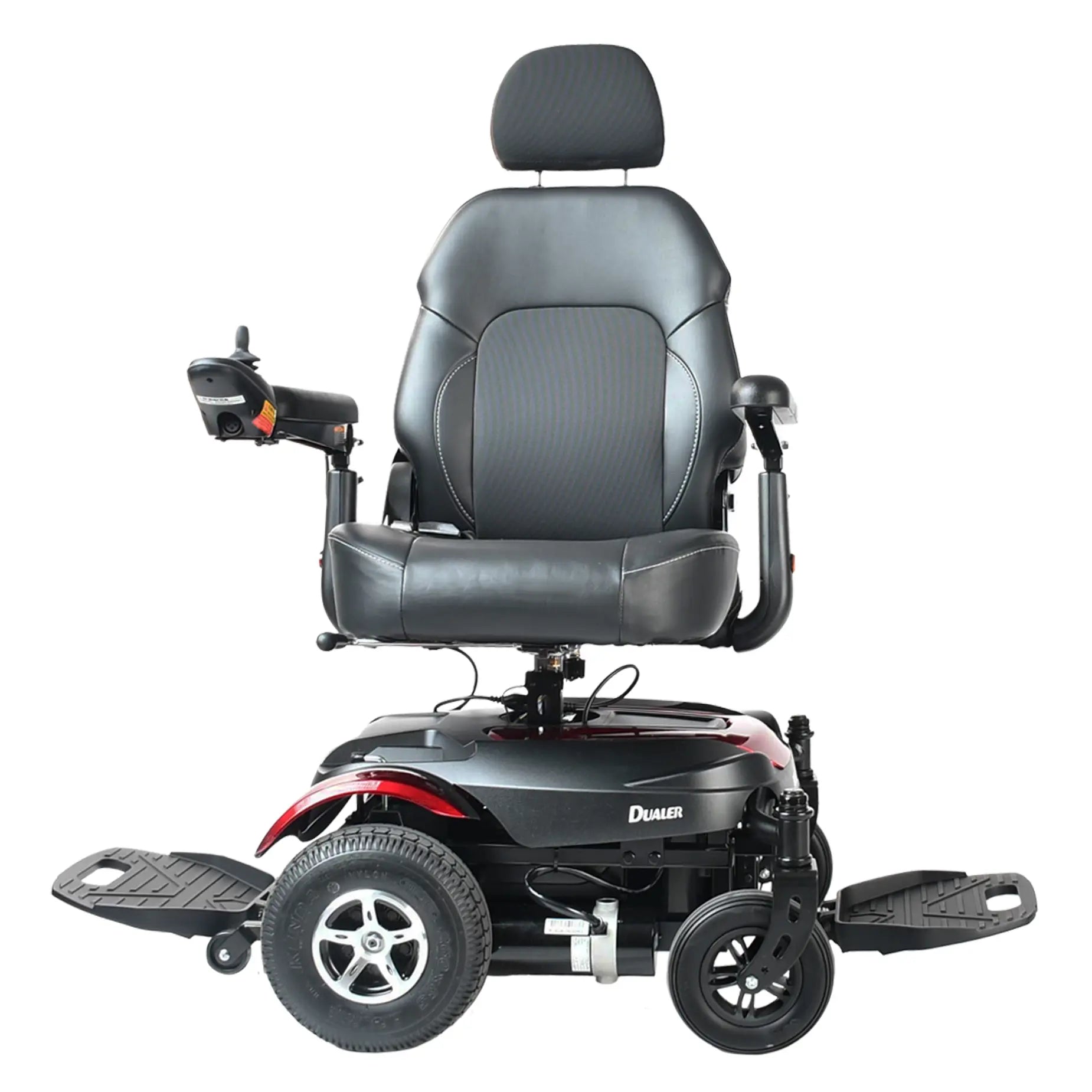

Merits Dualer power wheelchair (P312), 300 lbs weight capacity, range up to 18 miles per charge.
- Dual Drive System: Quickly switch between rear-wheel drive and front-wheel drive by swiveling the seat to suit different environments.

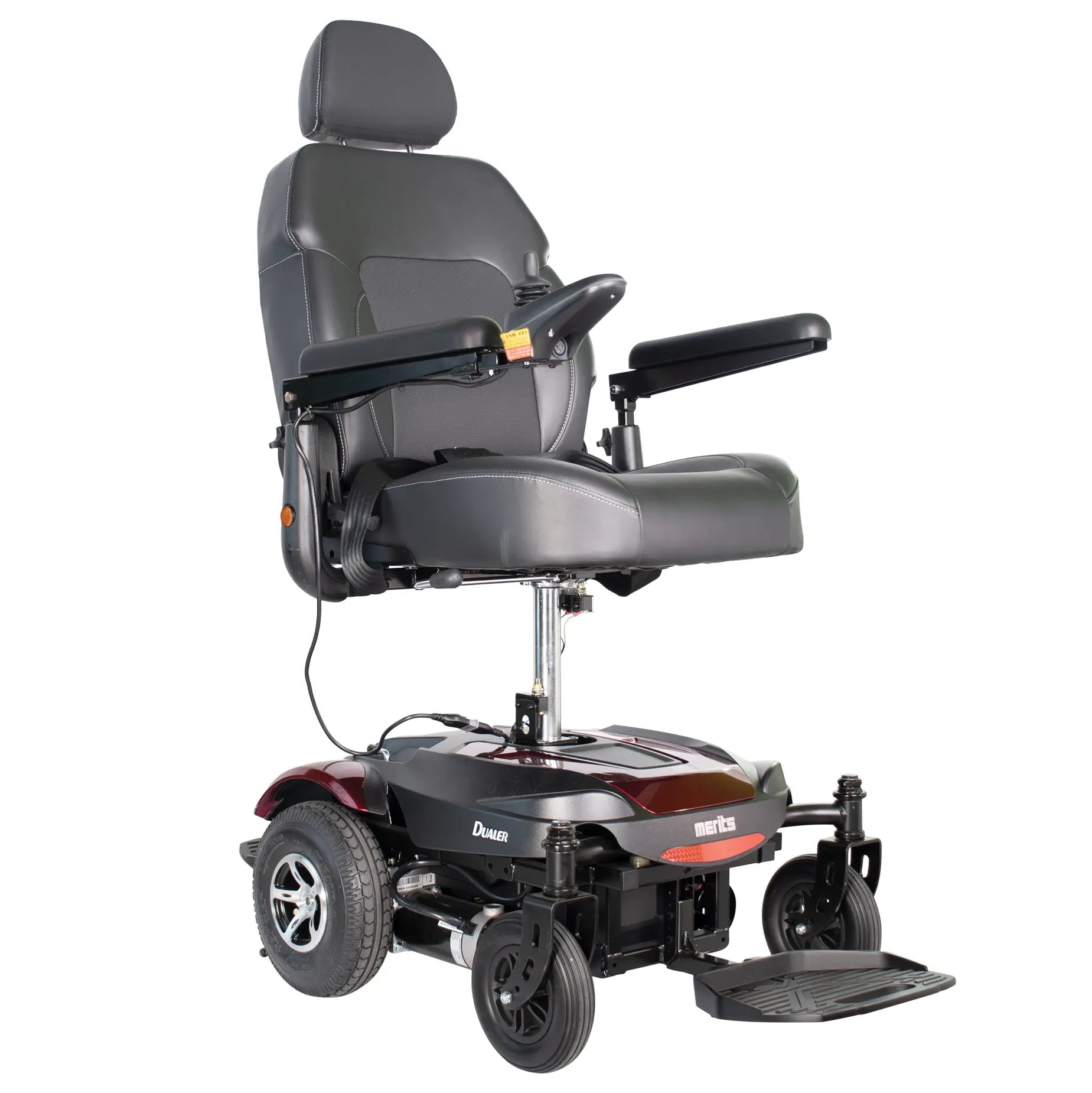

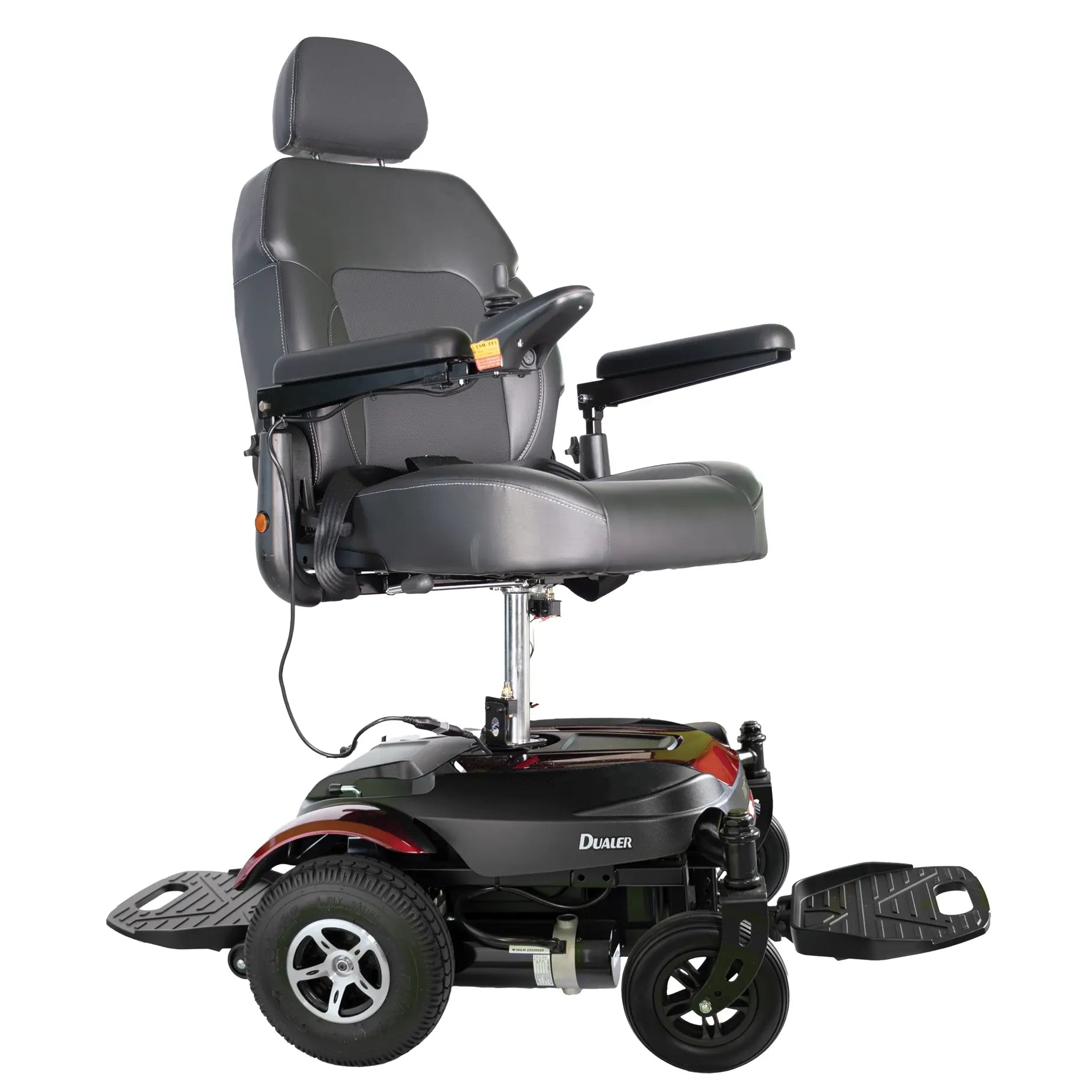

- Power Elevating Seat: A 5-inch power seat elevation enhances accessibility and everyday interaction with people and surroundings.

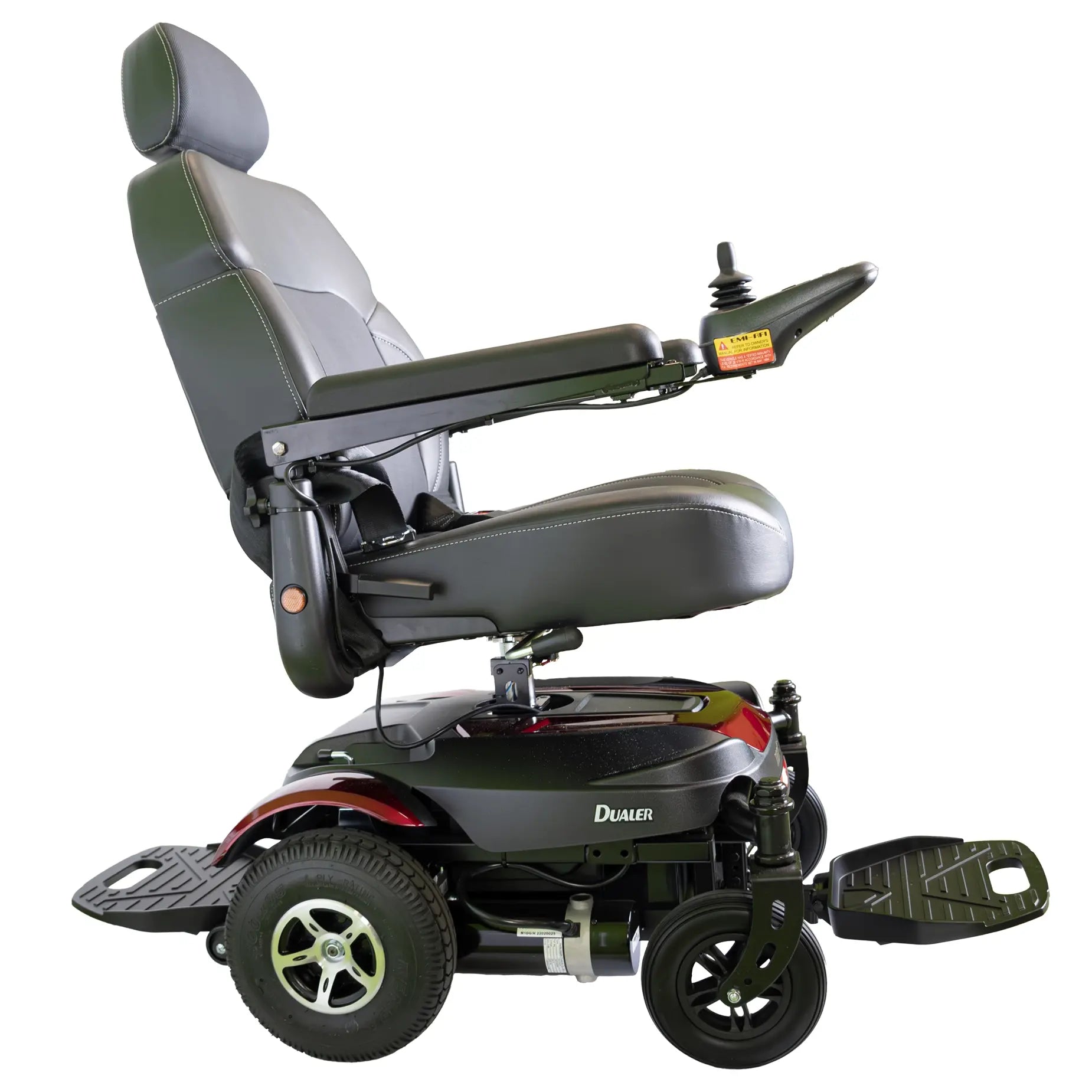

- Reclining Comfort: The ergonomic semi-reclining seat adjusts up to 135° for personalized comfort and support.
- Superior Traction: Large 10-inch knobby drive tires provide dependable traction and confident performance across varied terrain. Merits products are available exclusively through our network of authorized dealers and retailers. Find the dealer closest to you and take the next step toward greater mobility.
- Welcome to the Product Toolkit: Everything dealers and providers need to sell, support, and order this product is assembled here in one place. Select a tab above to access fliers, manuals, and more.
- Download Fliers & Images: Product Flier Marketing Video Product Images
- Download Manuals & Guides: User Manual Merits Basic Troubleshooting Guide Contact Us 4245 Evans Ave. Fort Myers, FL 33901 (239) 772-0579 sales@meritsusa.com 2026 Copyright. All rights reserved. Merits Health Products.
Specifications
General Specifications
- Weight Capacity: 300 lbs.
- Drive Configuration: RWD/FWD
- Turning Radius: 22.25"
- Ground Clearance: 2"
- Gradient (Incline): 12°
- Range Per Charge: Up to 18 miles
- Overall Length: 34"
- Overall Width: 23"-25"
- Product Weight: 189 lbs.
Seating Details
- Seat Type: Captain or pan seat
- Seat Width Options: 16" or 18"
- Seat Depth Options: 18"
- Seat-to-Floor Height: Captain: 22.5" + 5" liftPan: 19.25" + 5" lift
- Backrest Height: 18 or 20"
- Elevating Seat: 5” single post lift
Technical Details
- Motor: DC 24V/180W
- Controller: PG VR2 60A
- Battery Size: 35Ah, 12V, U1(2 required)
- Off-Board Charger: 5A
- Drive Wheels: 10” foam-filled
- Casters: Front: 8" solidRear: 3" anti-tippers
Coverage & Billing
- Medicare Group: Group 2
- Medicare Code: K0830/K0831
Compatible Accessories
- 66" Seat Belt (Standard is 60”) (43700319)
- 80" Seat Belt (Loop Style) (43701)
- Backpack - Medium 12" x 13" x 3” (B1117)
- Backpack - Deluxe 14” x 16” x 4” (B1121)
- Cane Holder (B6212)
- Cane & Crutch Holder (34200010)
- Crutch Holder (B6213)
- Cup Holder (46700060)
- Foldable Rear Basket - Medium (34200019)
- Foldable Rear Basket - Large (34200006)
- Multi-Accessory Receiver Adaptor (J4M)
- Oxygen Tank Holder #2 (B6211)
- Power Wheelchair Cover - Large (PWCC)
- Safety Flag (F1100)
- Side Bag (43701032)
- USB Charger (61230167)
- Walker Holder #1 (34203010)
- Walker Holder #2 (B6214)
Warranty
Covered by the Merits Health Products, Inc. warranty, administered through the selling dealer from the original consumer purchase date: 5-year warranty on the base frame; 13-month warranty on the joystick/power module/controller, motor/gearbox/brake assembly, electrical harnesses, angle sensor, circuit boards, charger, transaxle, seat components (post/mount, metal seat frame, swivel mechanism, cushion/back/positioning accessories), power seat actuator, caster beam and forks, anti-tipper assembly, footplates, and batteries. Wear items (tires and tubes, upholstery, fuses and bulbs, motor brushes, brake pads, plastic/rubber parts, battery cases, painted surfaces) are excluded. Full terms: Merits Warranty Policy (PDF)
