Merits Roadster 3 mobility scooter (S731), rear-wheel drive, 300 lbs weight capacity, range up to 6 miles per charge.

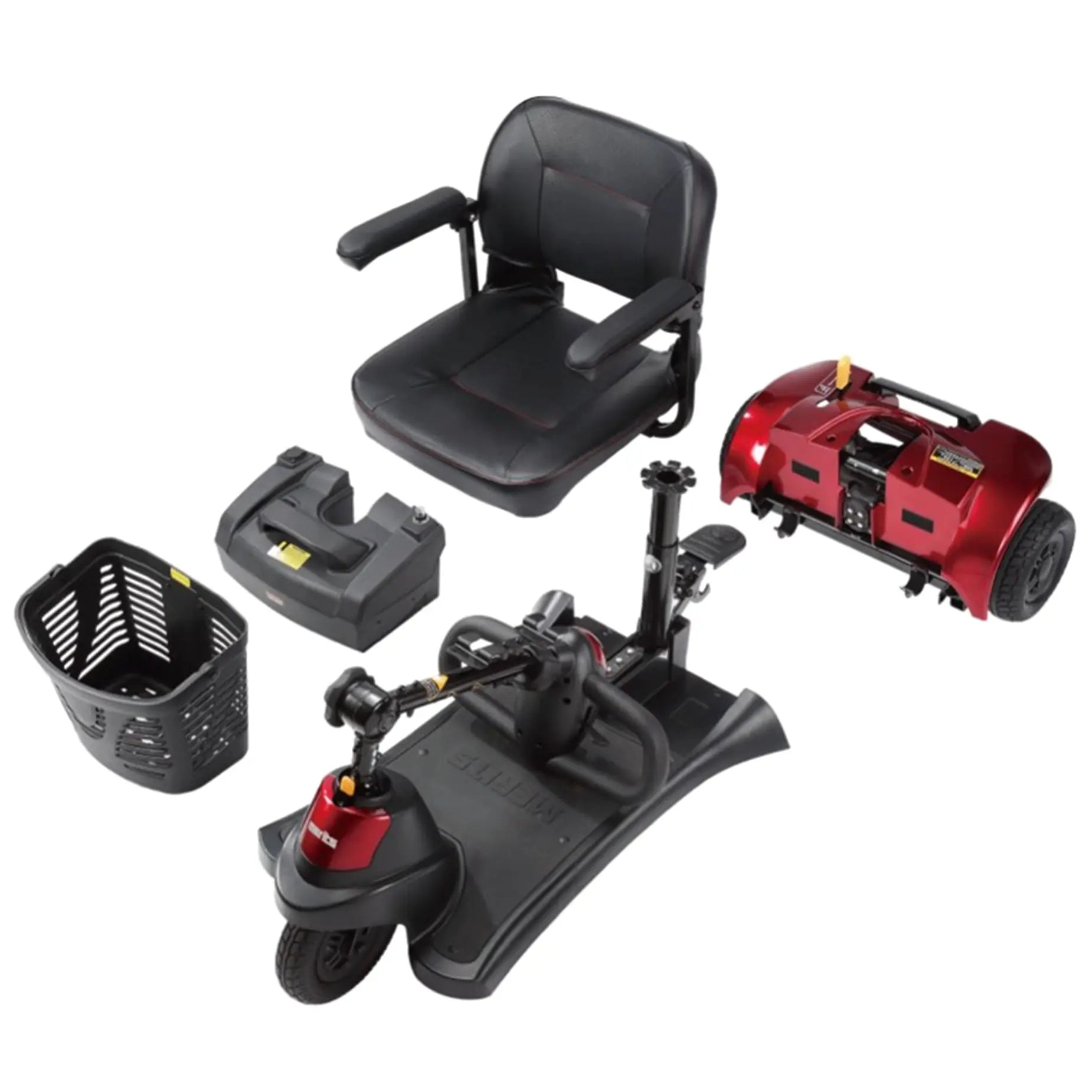

- Travel-Ready Design: Disassembles into five lightweight pieces with an auto-latching lockup system for easy transport and storage.
- Ergonomic Controls: An angle-adjustable tiller and loop throttle allow comfortable operation by palm or finger.
- Detachable Battery: The removable battery pack features a built-in charging port for convenient charging on or off the scooter.
- Easy Adjustability: Adjustable seat height and armrest width provide a personalized fit for greater comfort.
Specifications
General Specifications
- Weight Capacity: 300 lbs.
- Drive Configuration: RWD
- Turning Radius: 35.4”
- Ground Clearance: 2"
- Gradient (Incline): 6°
- Range Per Charge: Up to 6 miles
- Overall Length: 40"
- Overall Width: 21"
- Product Weight: 99 lbs.
Seating Details
- Seat Type: Padded swivel seat
- Seat Width Options: 18"
- Seat Depth Options: 17"
- Seat-to-Deck Height: 16-18”
- Seat-to-Ground Height: 19-21"
- Backrest Height: 15"
Technical Details
- Motor: DC 24V/100W
- Controller: PG S-DRIVE 45A
- Battery Size: 12V/12AH(2 required)
- Off-Board Charger: 2A
- Front Wheel: 7" PU
- Rear Wheel: 8" PU
Coverage & Billing
- Medicare Coverage: Group 1
- Medicare Code: K0800
Compatible Accessories
- 66" Seat Belt (Standard is 60”) (43700319)
- 80" Seat Belt (Loop Style) (43701)
- Cup Holder (46700060)
- Power Wheelchair Cover - Large (PWCC)
- Safety Flag (F1100)
- Side Bag (43701032)
- USB Charger (61230167)
Warranty
Covered by the Merits Health Products, Inc. warranty, administered through the selling dealer from the original consumer purchase date: 5-year warranty on the base frame; 13-month warranty on the joystick/power module/controller, motor/gearbox/brake assembly, electrical harnesses, angle sensor, circuit boards, charger, transaxle, seat components (post/mount, metal seat frame, swivel mechanism, cushion/back/positioning accessories), power seat actuator, caster beam and forks, anti-tipper assembly, footplates, and batteries. Wear items (tires and tubes, upholstery, fuses and bulbs, motor brushes, brake pads, plastic/rubber parts, battery cases, painted surfaces) are excluded. Full terms: Merits Warranty Policy (PDF)
