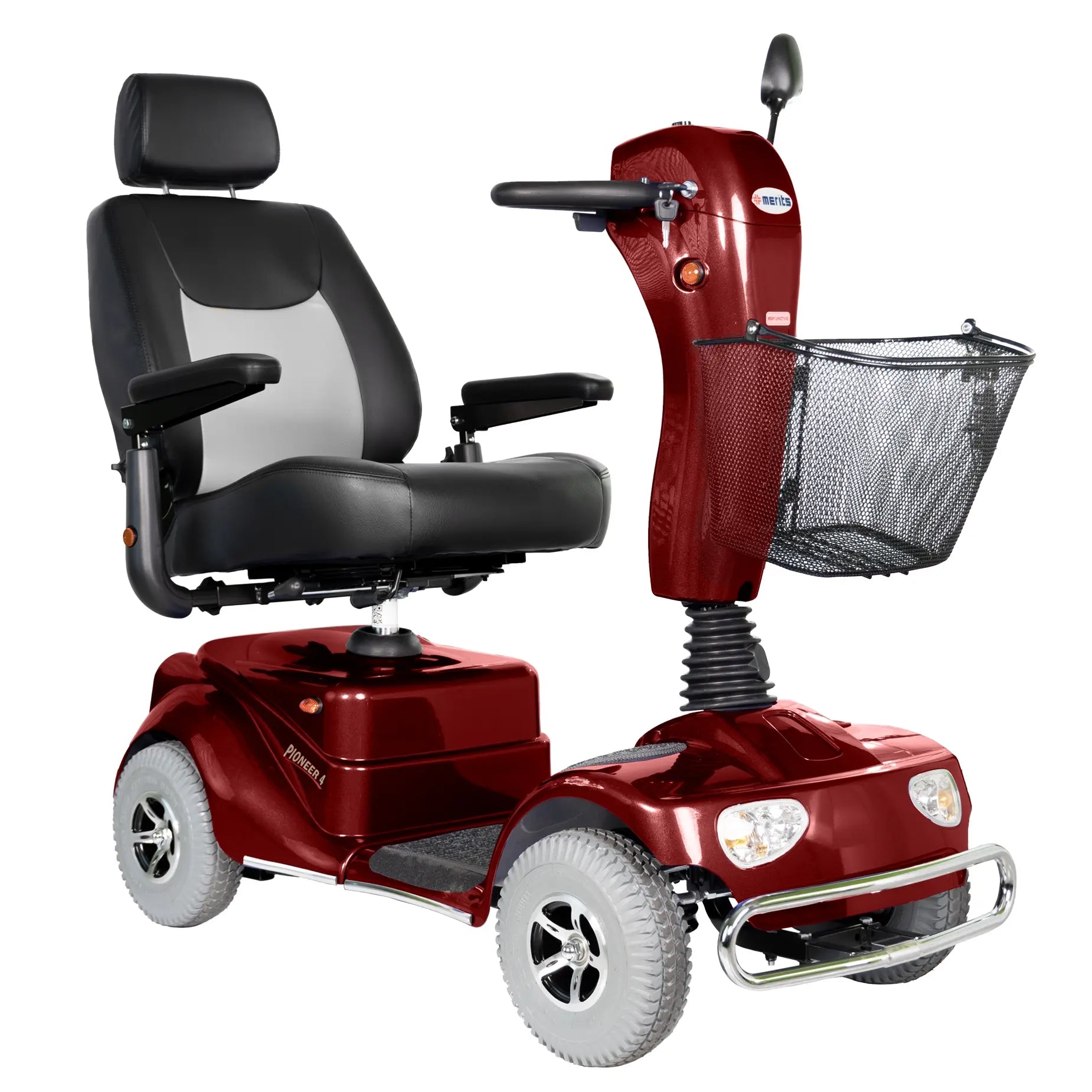

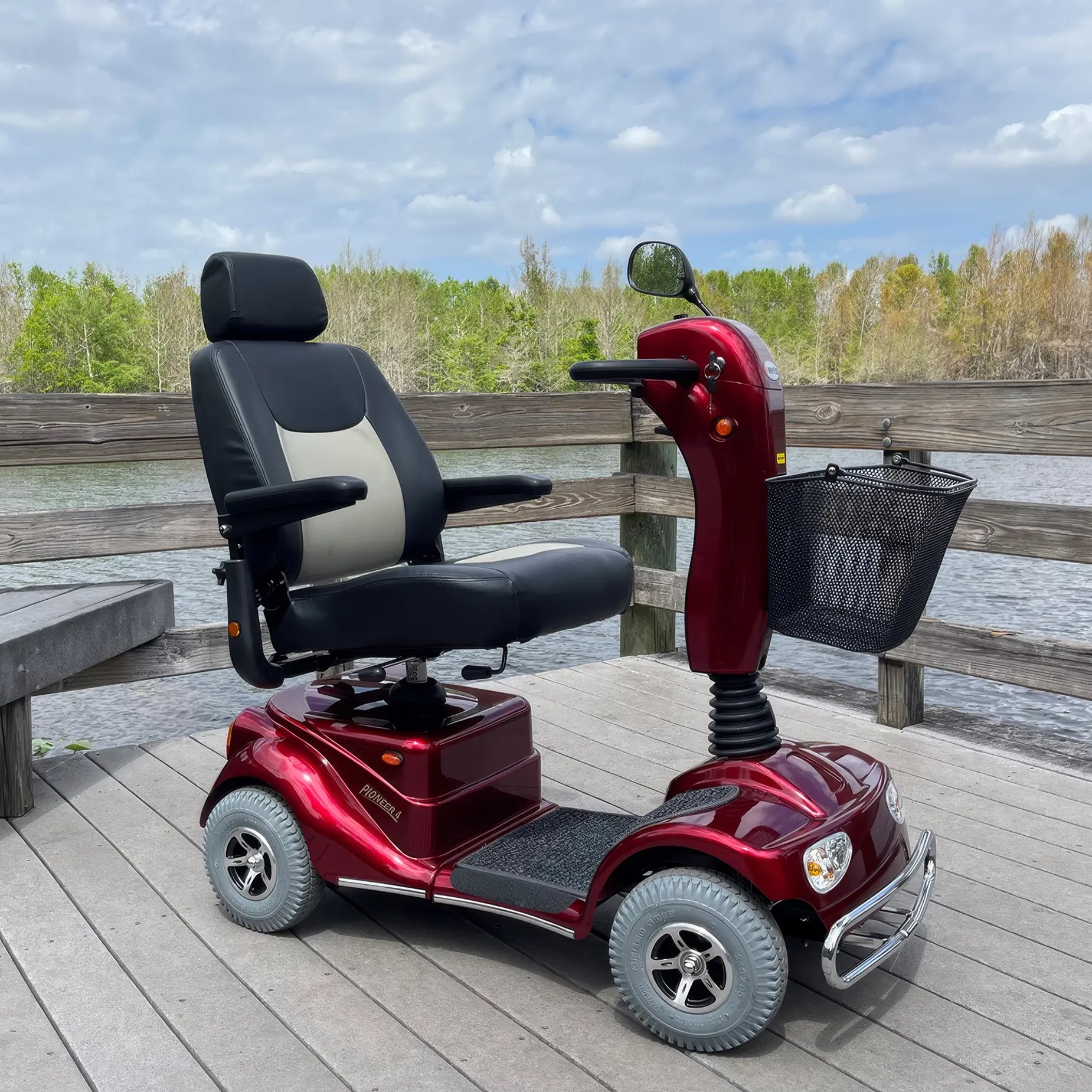

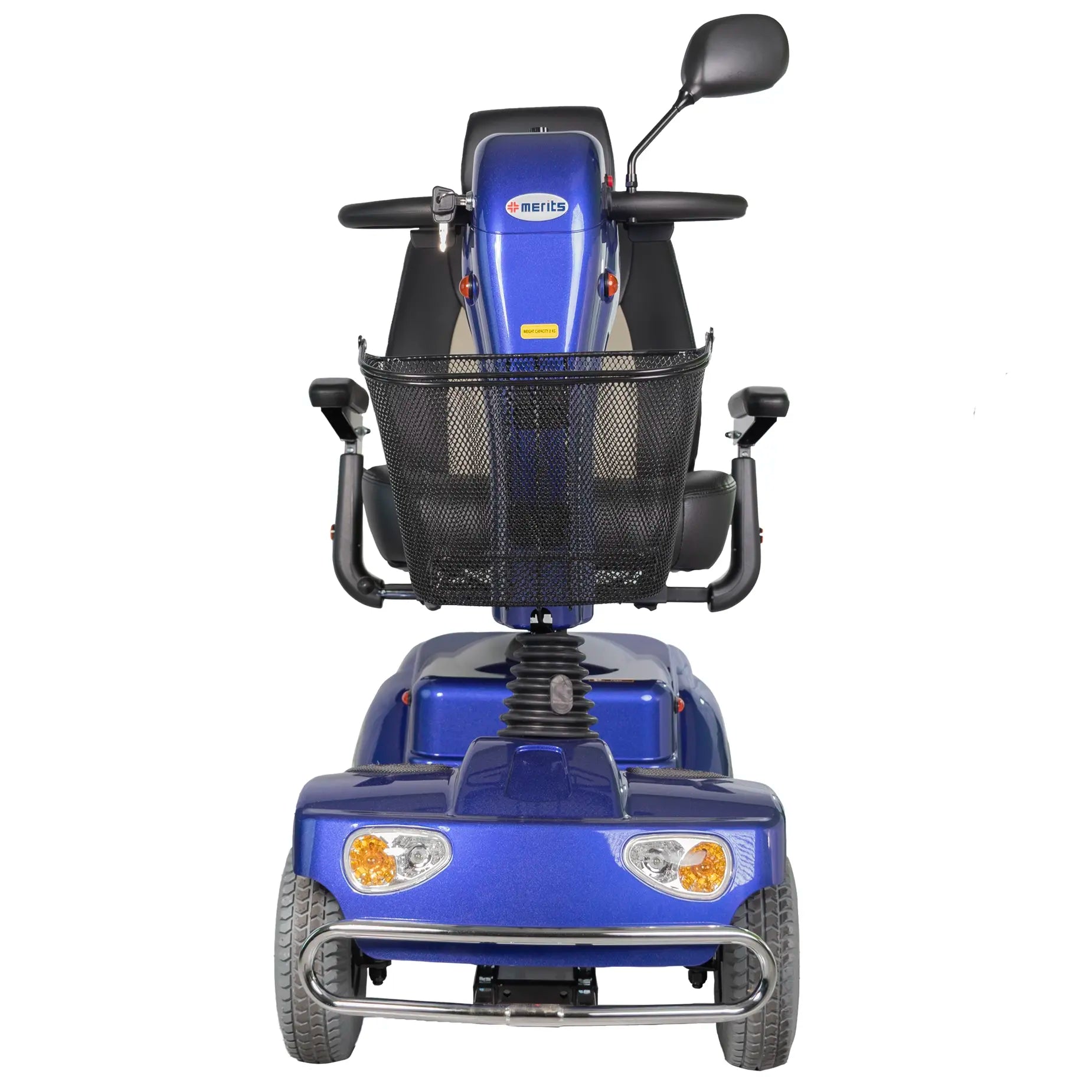

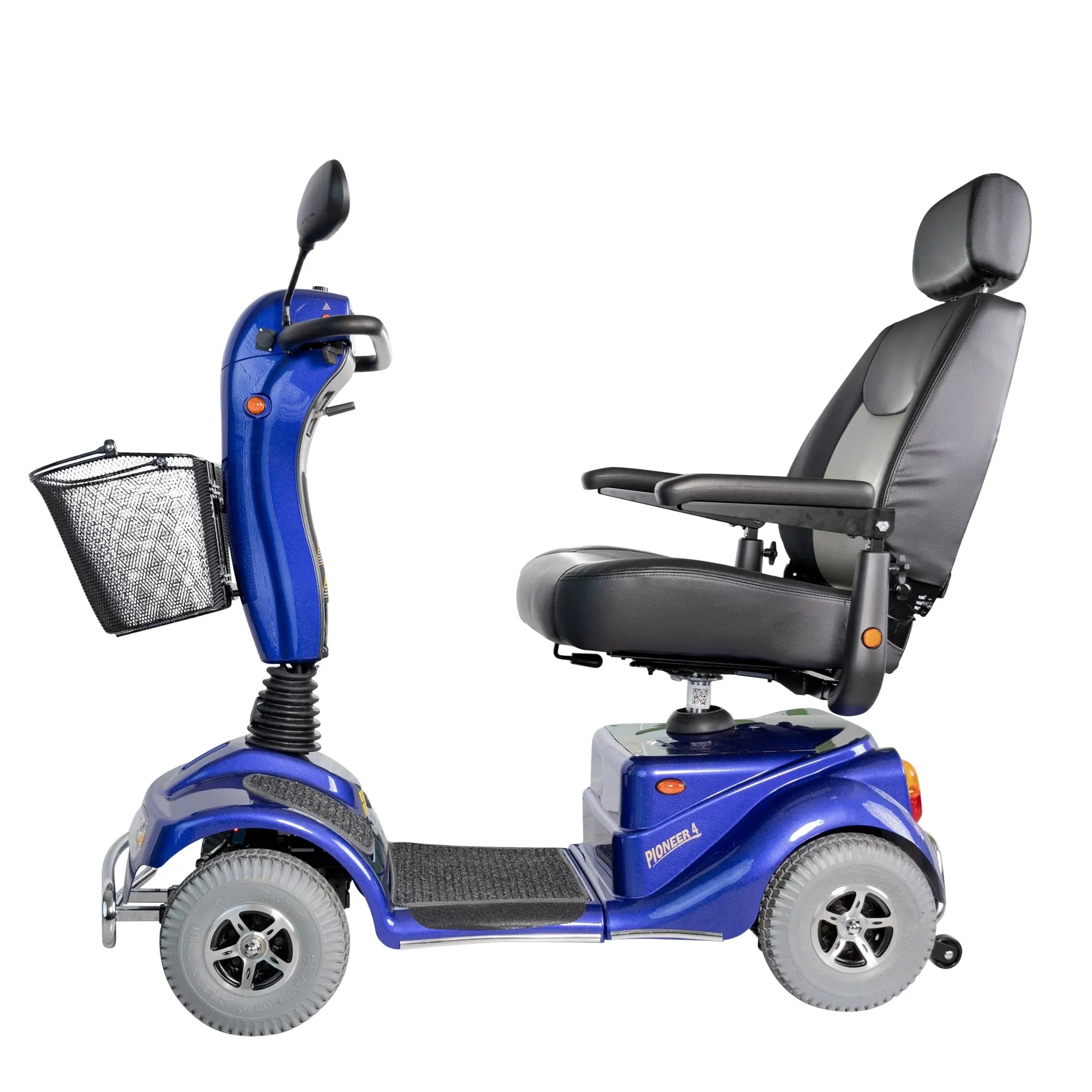

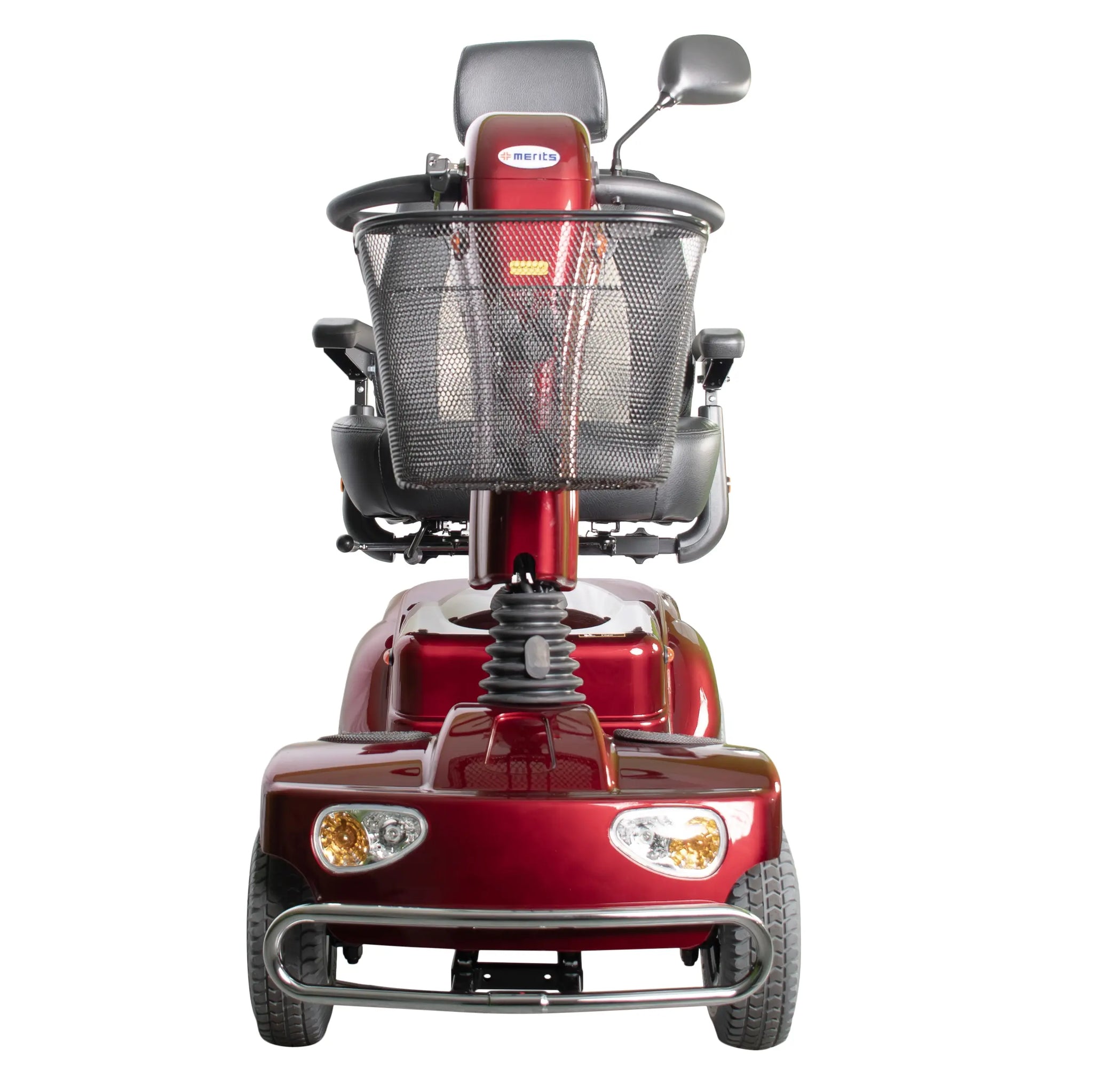

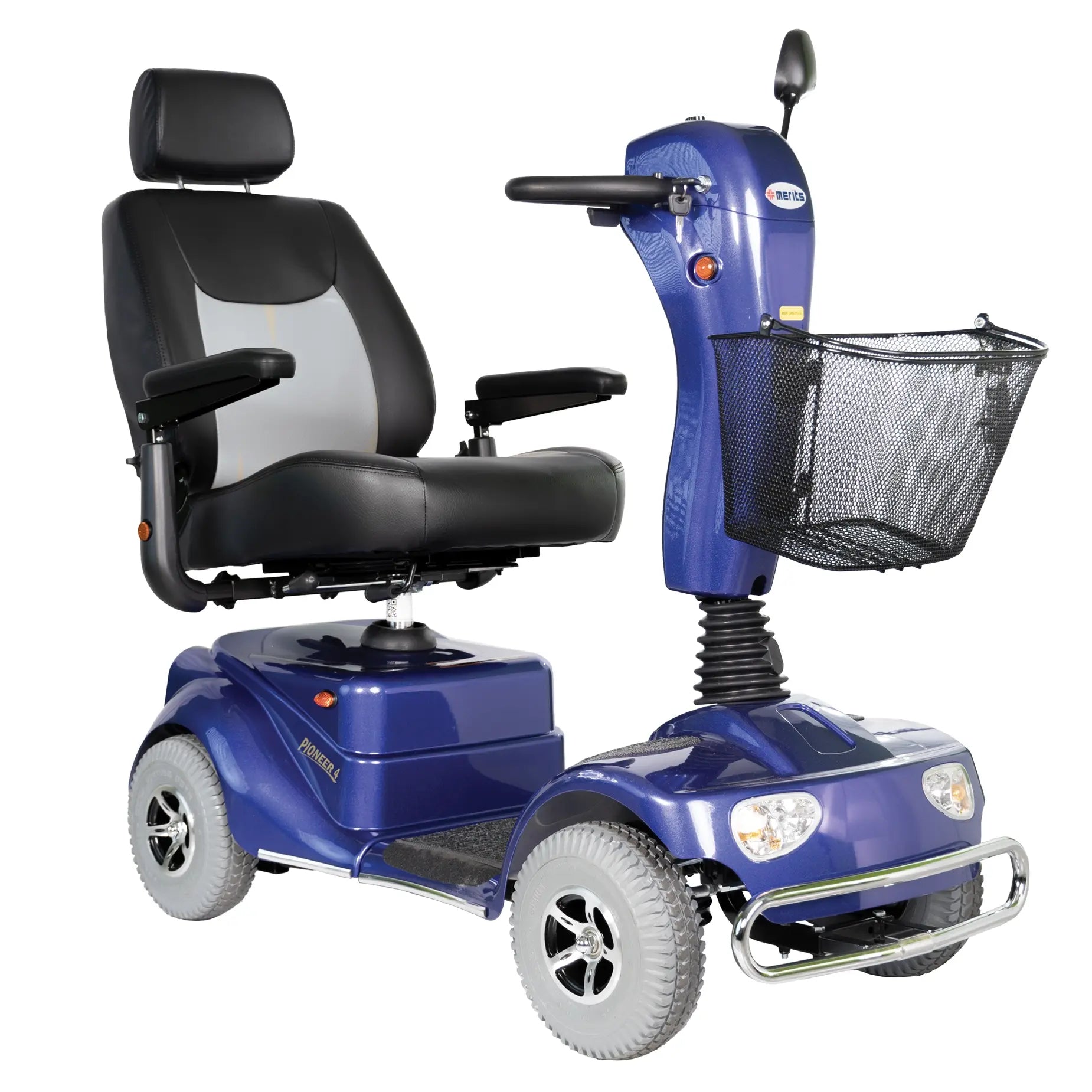

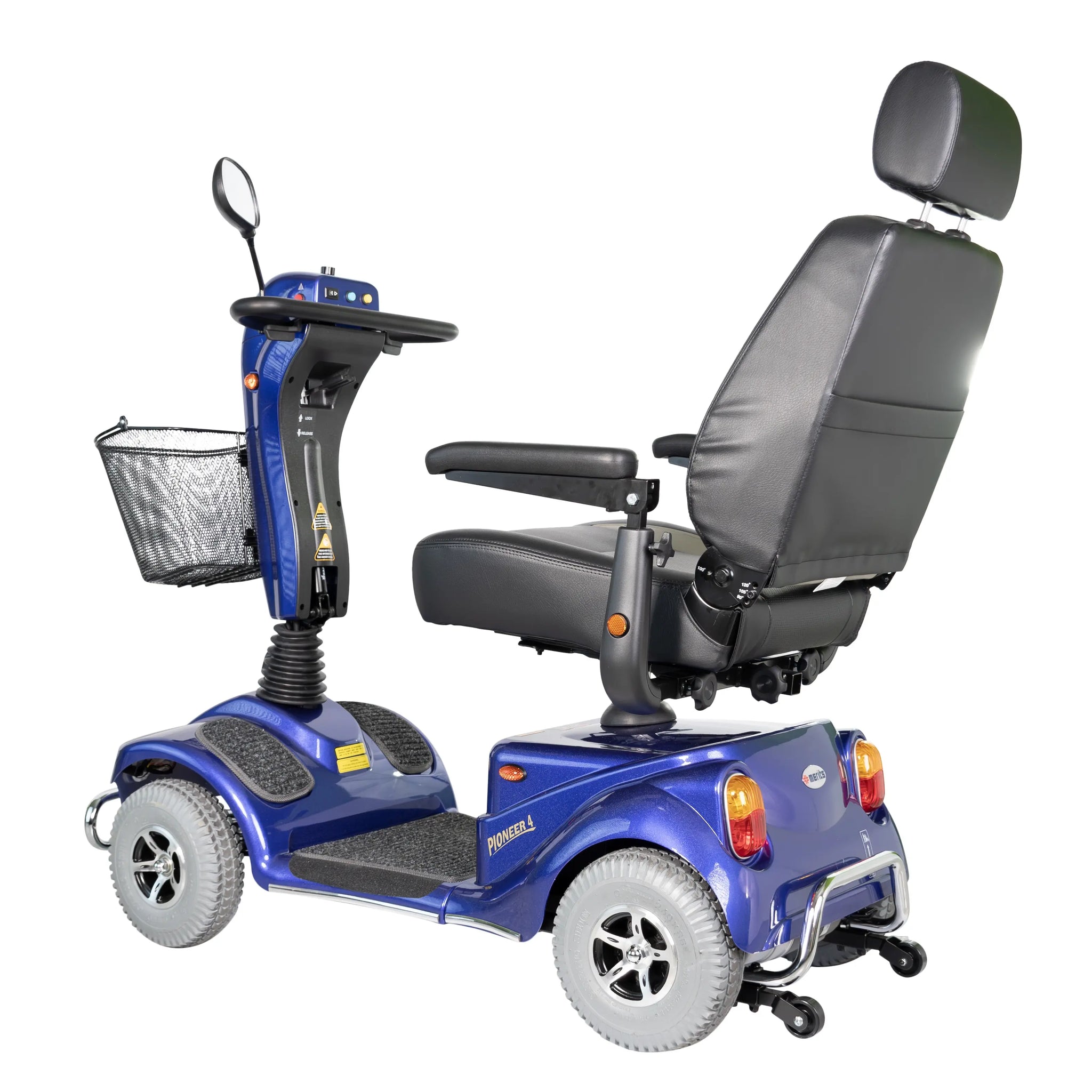

Merits Pioneer 4 mobility scooter (S141), rear-wheel drive, 400 lbs weight capacity, range up to 18 miles per charge.
- Heavy-Duty Support: A one-piece frame supports up to 400 pounds for dependable strength and long-term durability.
- Stable Design: The four-wheel platform provides enhanced stability and confident handling across a variety of surfaces.
- Comfortable Seating: An adjustable captain seat with height- and angle-adjustable padded armrests creates a personalized fit.
- Road Ready: Headlights, tail lights, turn signals, hazard lights, and anti-tippers enhance visibility and everyday safety.
Specifications
General Specifications
- Weight Capacity: 400 lbs.
- Drive Configuration: RWD
- Turning Radius: 52”
- Ground Clearance: 4"
- Gradient (Incline): 8°
- Range Per Charge: Up to 18 miles
- Overall Length: 48"
- Overall Width: 23"
- Product Weight: 189 lbs.
Seating Details
- Seat Type: Adjustable captain seat
- Seat Width Options: 20"
- Seat Depth Options: 20"
- Seat-to-Deck Height: 16"-19”
- Seat-to-Ground Height: 25"-28"
- Backrest Height: 20"
Technical Details
- Motor: DC 24V/250W
- Controller: Dynamic Rhino2 90A
- Battery Size: 12V/U1 (34AH)(2 required)
- Off-Board Charger: 5A
- Front Wheel: 10" flat-free
- Rear Wheel: 10" flat-free
Coverage & Billing
- Medicare Coverage: Group 2
- Medicare Code: K0899
Compatible Accessories
- 66" Seat Belt (Standard is 60”) (43700319)
- 80" Seat Belt (Loop Style) (43701)
- Cup Holder (46700060)
- Safety Flag (F1100)
- Side Bag (43701032)
- USB Charger (61230167)
Warranty
Covered by the Merits Health Products, Inc. warranty, administered through the selling dealer from the original consumer purchase date: 5-year warranty on the base frame; 13-month warranty on the joystick/power module/controller, motor/gearbox/brake assembly, electrical harnesses, angle sensor, circuit boards, charger, transaxle, seat components (post/mount, metal seat frame, swivel mechanism, cushion/back/positioning accessories), power seat actuator, caster beam and forks, anti-tipper assembly, footplates, and batteries. Wear items (tires and tubes, upholstery, fuses and bulbs, motor brushes, brake pads, plastic/rubber parts, battery cases, painted surfaces) are excluded. Full terms: Merits Warranty Policy (PDF)
