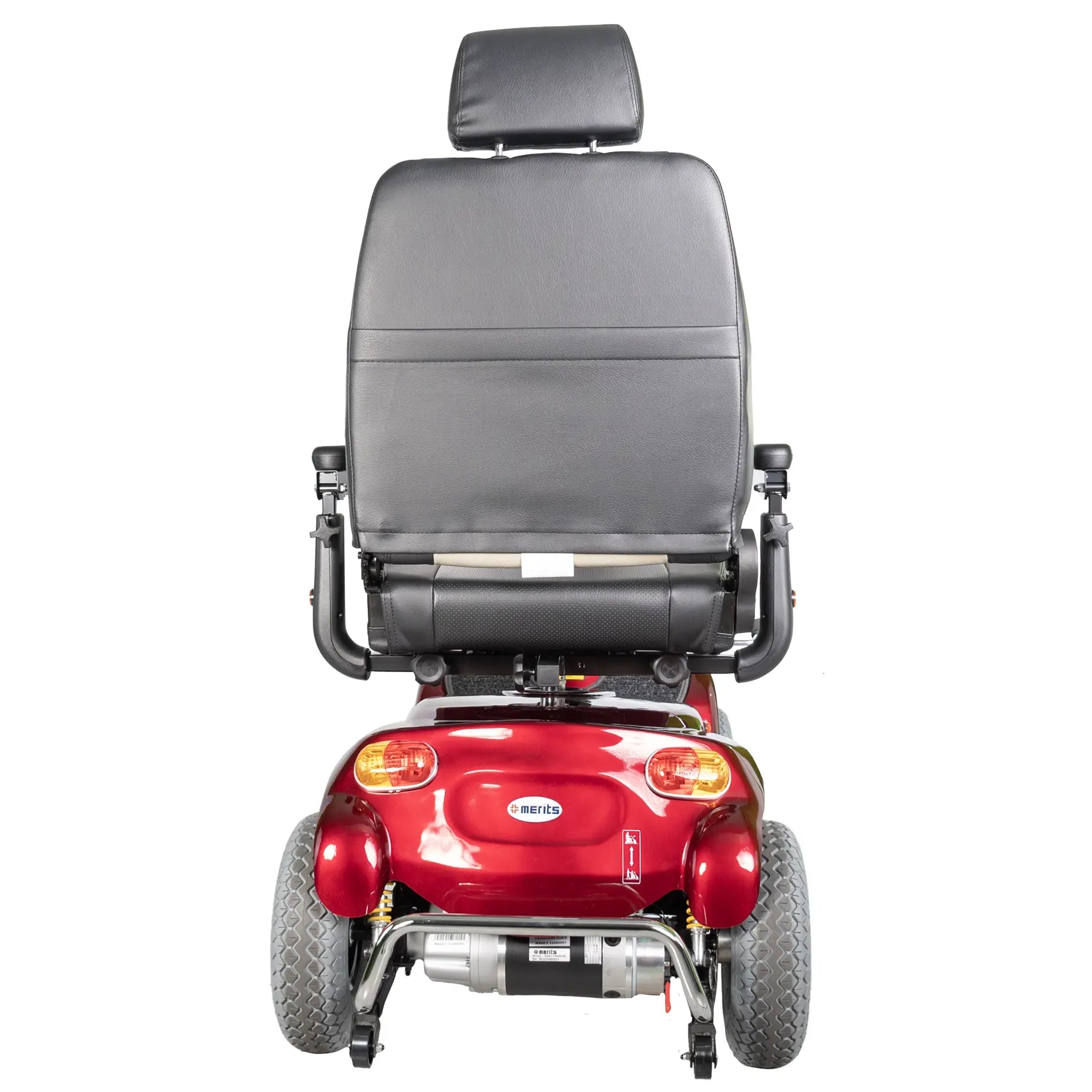

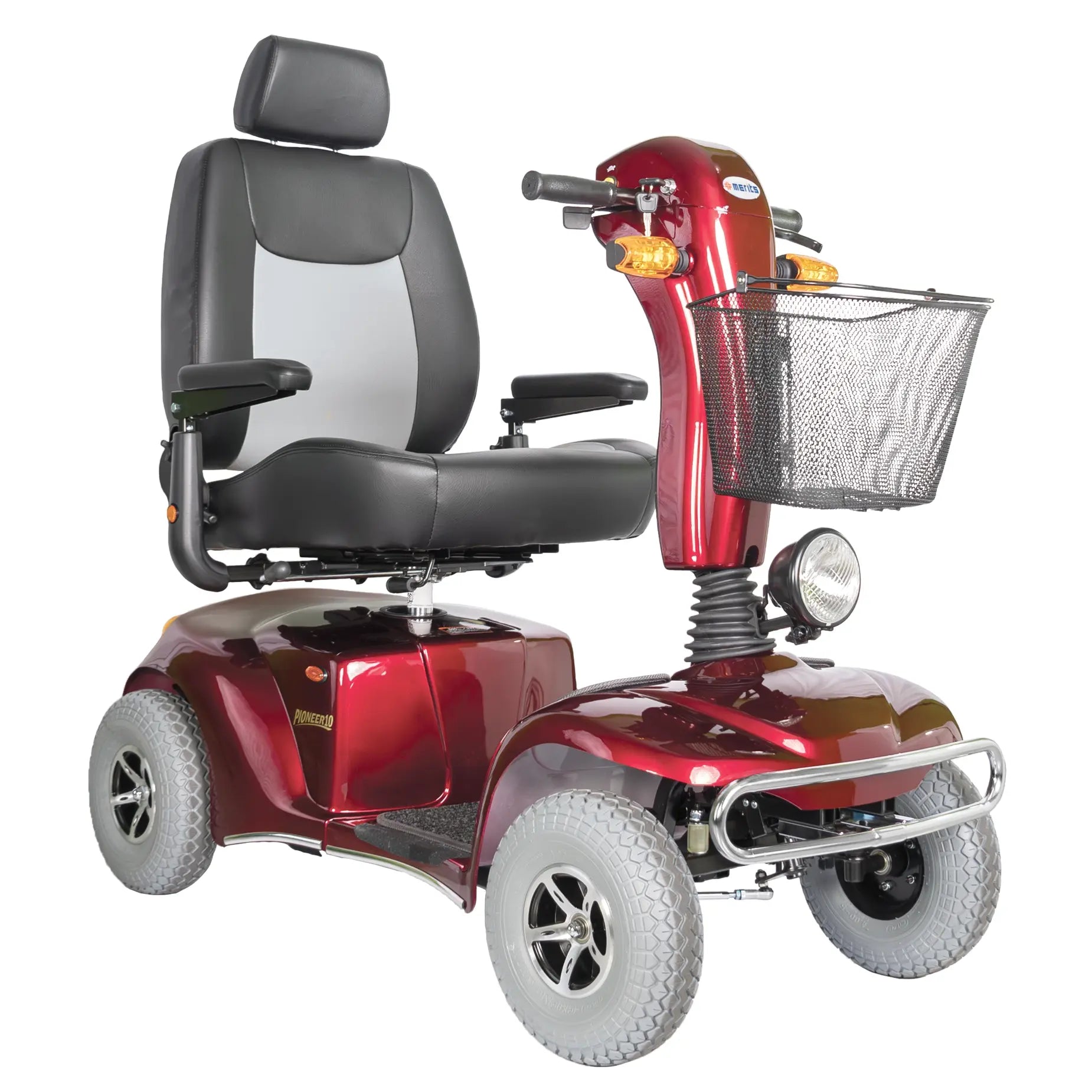

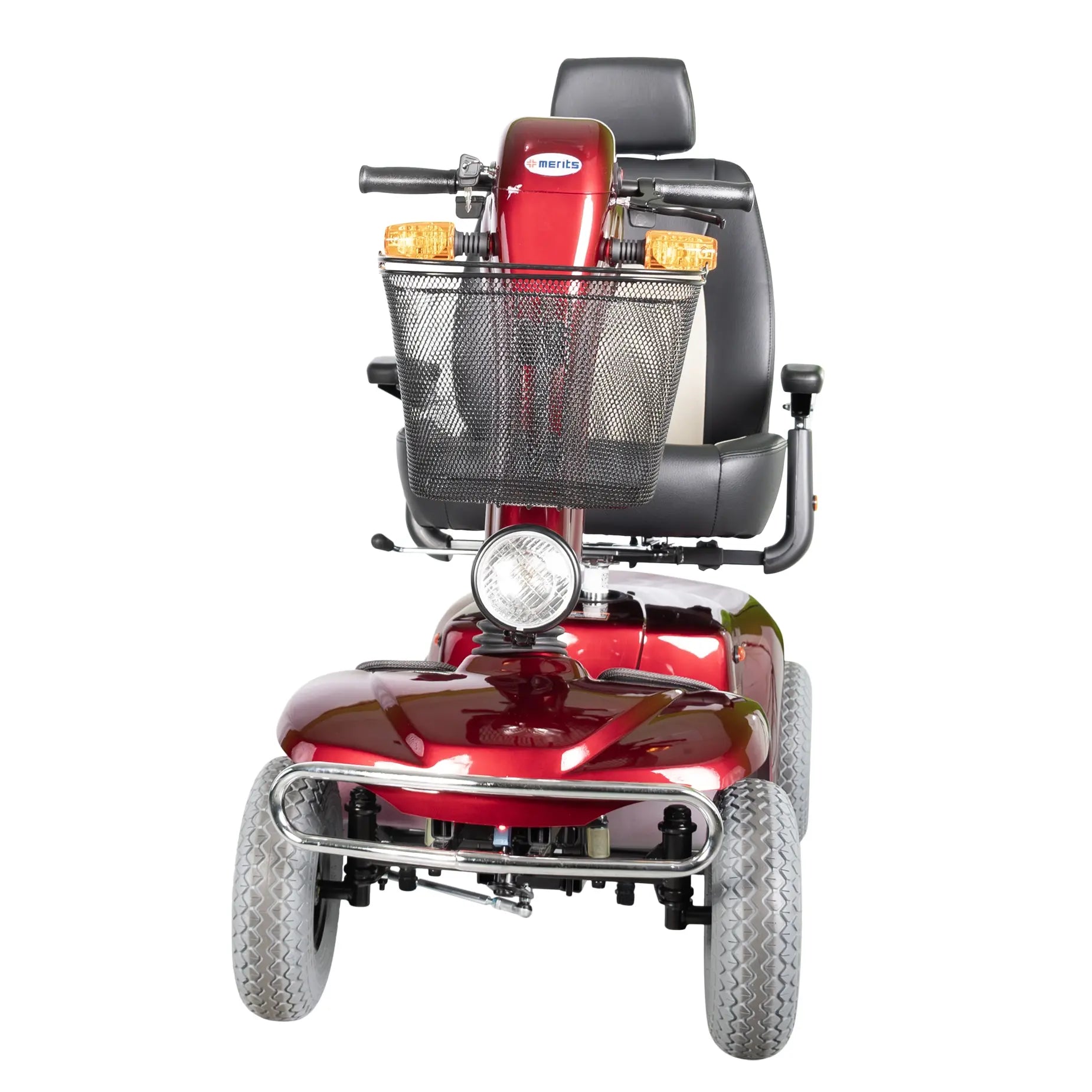

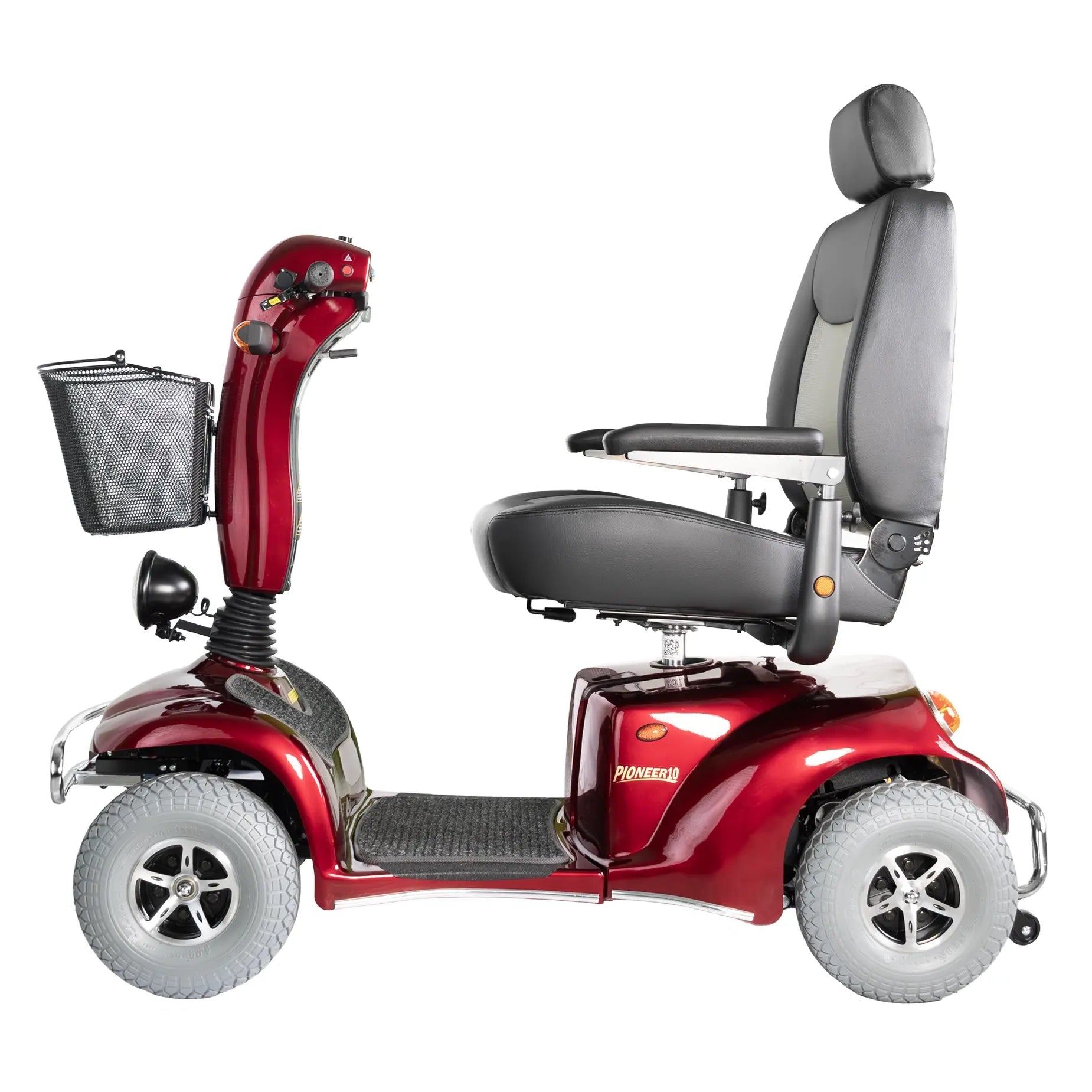

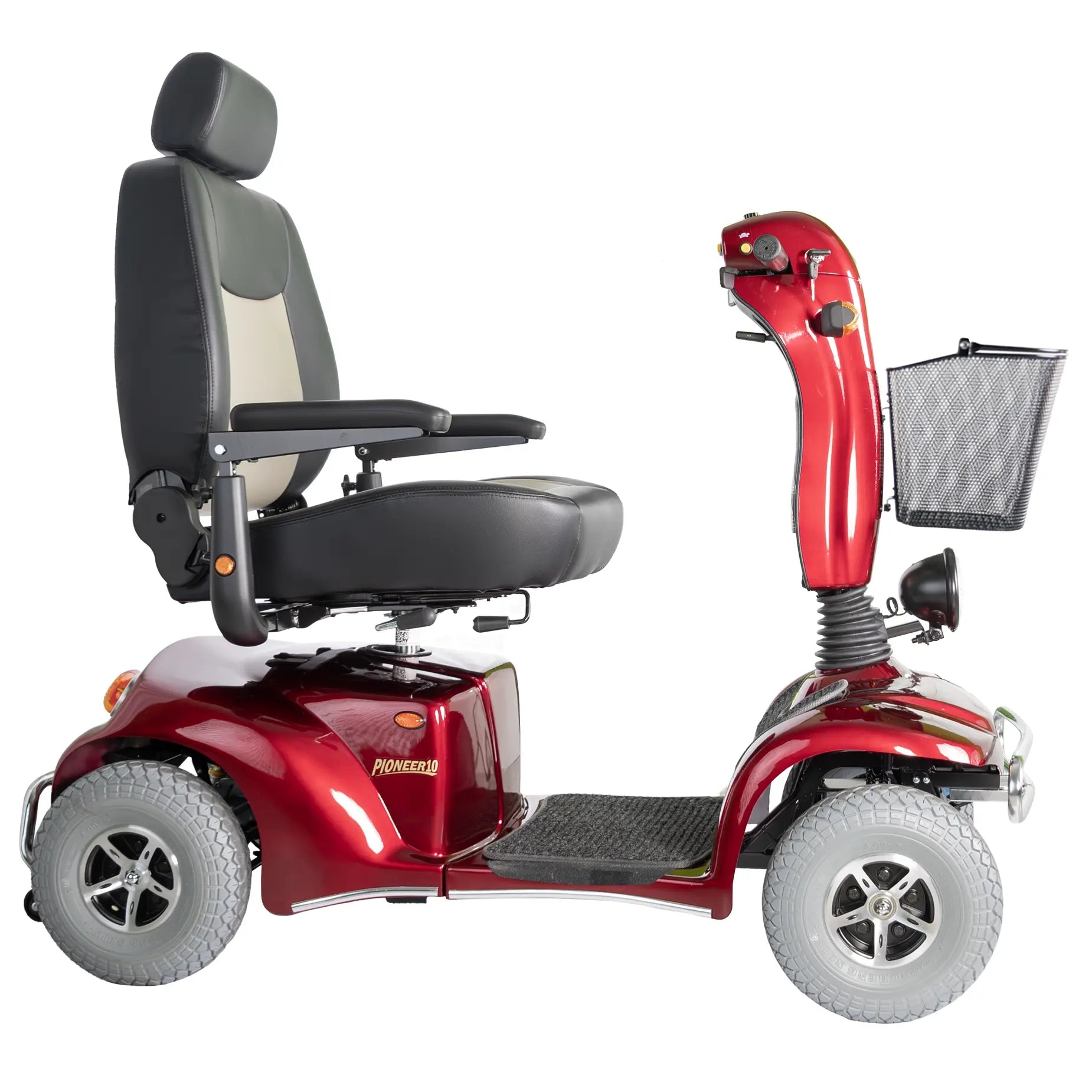

Merits Pioneer 10 mobility scooter (S341), rear-wheel drive, 500 lbs weight capacity, range up to 32 miles per charge.
- Heavy-Duty Support: A 500-pound weight capacity provides dependable strength and stability for users requiring greater support.
- Four-Wheel Stability: A stable four-wheel platform delivers confident handling and enhanced control across a variety of surfaces.
- Comfortable Ride: A sliding captain seat and hydraulic adjustable tiller provide a personalized, ergonomic driving experience.
- Long-Range: Travel up to 32 miles per charge with a powerful motor and high-capacity battery system.
Specifications
General Specifications
- Weight Capacity: 500 lbs.
- Drive Configuration: RWD
- Turning Radius: 62”
- Ground Clearance: 4"
- Gradient (Incline): 12°
- Range Per Charge: Up to 32 miles
- Overall Length: 59"
- Overall Width: 27"
- Product Weight: 269 lbs.
Seating Details
- Seat Type: Sliding captain seat
- Seat Width Options: 22"
- Seat Depth Options: 20"
- Seat-to-Deck Height: 16-19”
- Seat-to-Ground Height: 25-28"
- Backrest Height: 22"
Technical Details
- Motor: DC 24V/400W
- Controller: Dynamic Rhino2 160A
- Battery Size: 12V/Group 24 (70-80AH)(2 required)
- Off-Board Charger: 6A
- Front Wheel: 12.5" flat-free
- Rear Wheel: 12.5" flat-free
Coverage & Billing
- Medicare Coverage: Group 2
- Medicare Code: K0899
Compatible Accessories
- 66" Seat Belt (Standard is 60”) (43700319)
- 80" Seat Belt (Loop Style) (43701)
- Cup Holder (46700060)
- Safety Flag (F1100)
- Side Bag (43701032)
- USB Charger (61230167)
Warranty
Covered by the Merits Health Products, Inc. warranty, administered through the selling dealer from the original consumer purchase date: 5-year warranty on the base frame; 13-month warranty on the joystick/power module/controller, motor/gearbox/brake assembly, electrical harnesses, angle sensor, circuit boards, charger, transaxle, seat components (post/mount, metal seat frame, swivel mechanism, cushion/back/positioning accessories), power seat actuator, caster beam and forks, anti-tipper assembly, footplates, and batteries. Wear items (tires and tubes, upholstery, fuses and bulbs, motor brushes, brake pads, plastic/rubber parts, battery cases, painted surfaces) are excluded. Full terms: Merits Warranty Policy (PDF)
